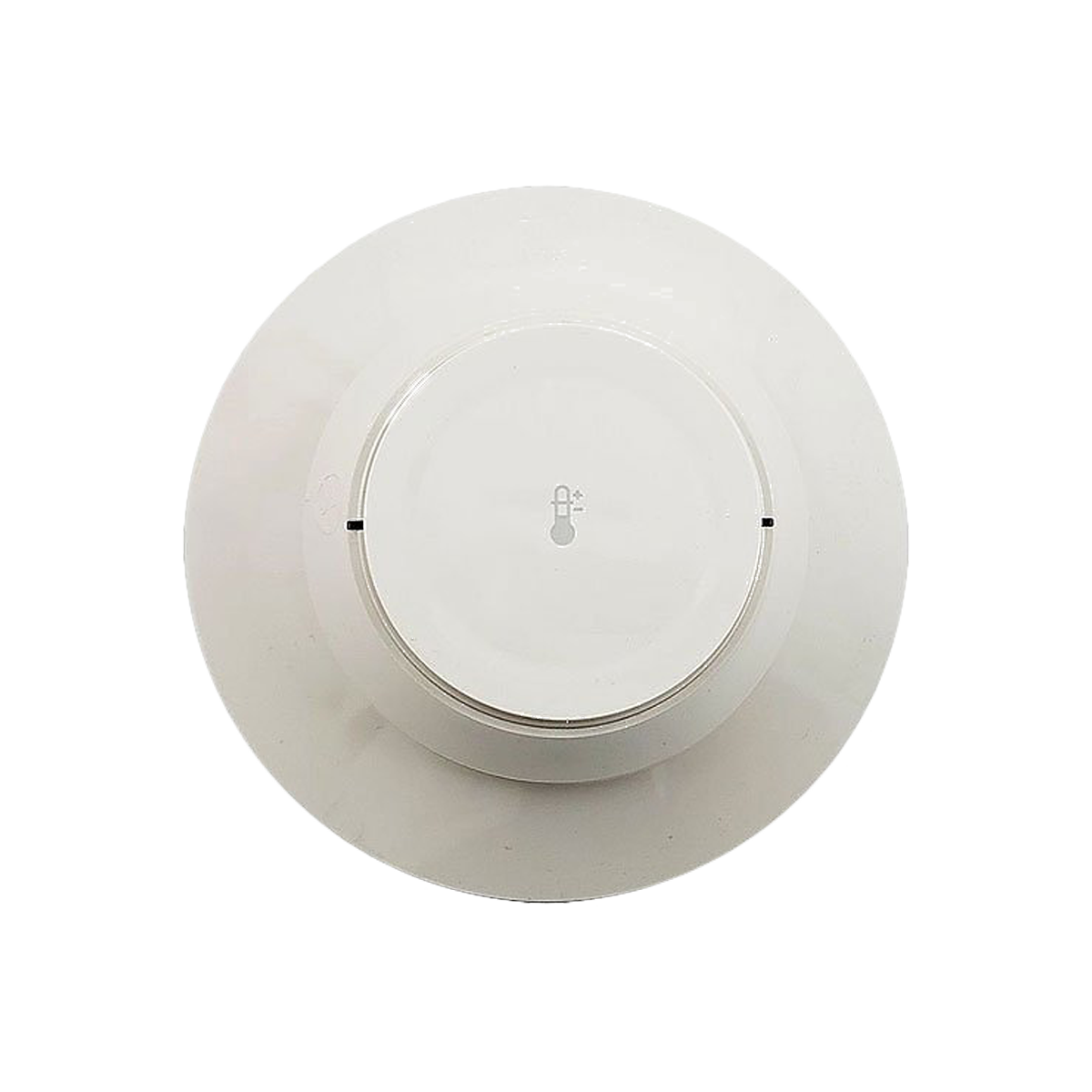

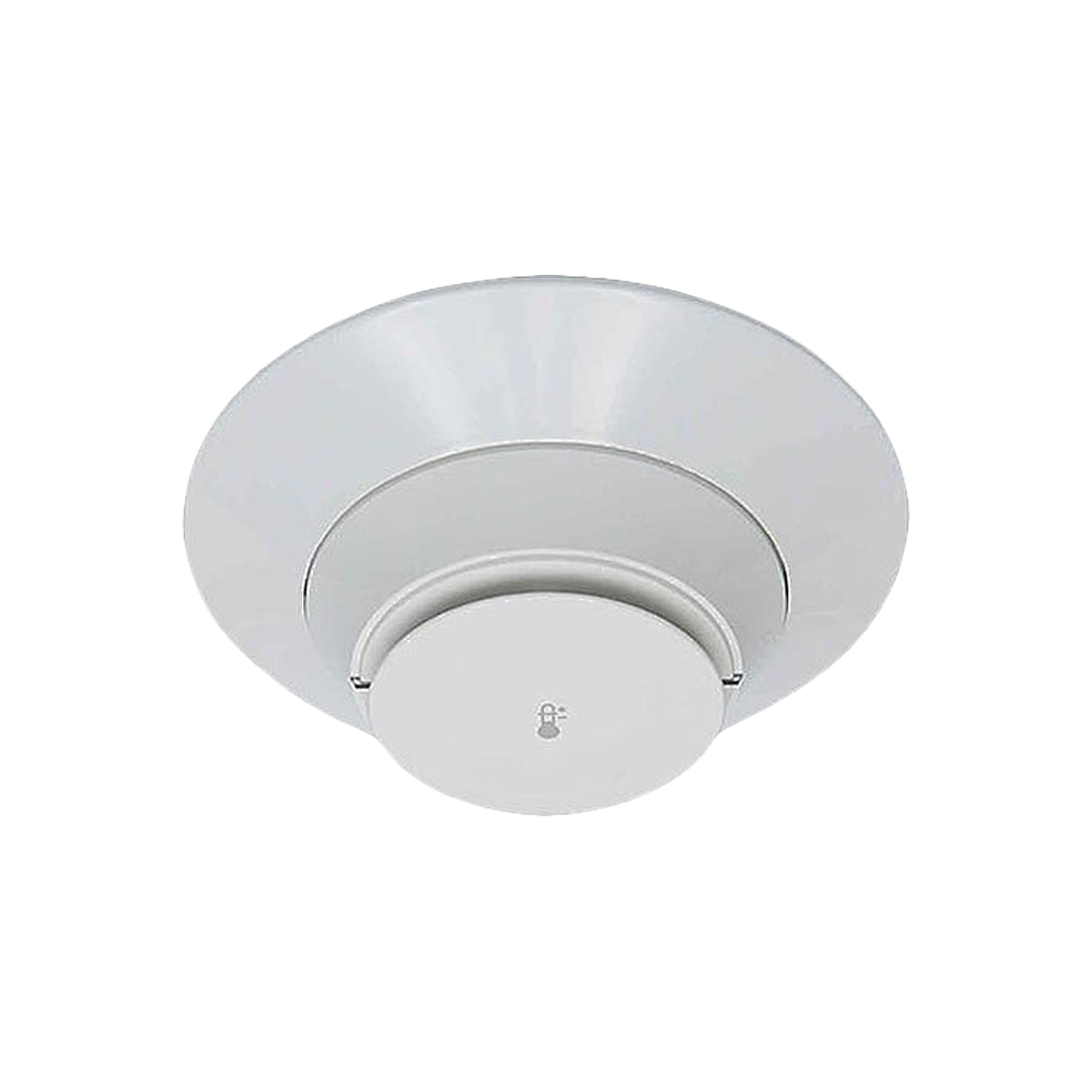

Honeywell IDP-HEAT-ROR-IV Intelligent Thermal Detector
- الارتفاع: 2.0 بوصة (51 ملم) عند التركيب في قاعدة B300-6
- نطاق درجة حرارة التشغيل: -4 فهرنهايت إلى 100 فهرنهايت (-20 درجة مئوية إلى 38 درجة مئوية)
- الرطوبة: 10% إلى 93% دون تكاثف
- نطاق الجهد: 15 إلى 32 فولت تيار مستمر
- تيار الاستعداد (@ 24 فولت تيار مستمر): 200 ميكرو أمبير
المواصفات الفنية
Physical
- Height: 2.0″ (51mm) when installed in a B300-6 base.
- Diameter: 6.2″ (156mm) when installed in a B300-6 base; 4.1″ (104mm) when installed in a B501 base.
- Weight: 3.4 oz (95g).
Environmental
- Operating Temperature Range:
- Thermal 135°F rate-of-rise: -4°F to 100°F (-20°C to 38°C).
- Humidity: 10% to 93% non-condensing.
- Rate-of-Rise Detection: Responds to greater than 15°F/minute or 135°F (8.3°C/minute or 57°C).
Electrical Ratings
- Voltage Range: 15 to 32VDC.
- Standby Current (@ 24 VDC): 200µA (one communication every 5 seconds with green LED enabled).
- Maximum Alarm Current (Max.): 2mA @ 24VDC (one communication every 5 seconds with red LED enabled).
- Maximum Current (Max.): 4.5mA @ 24VDC (one communication every 5 seconds with amber LED enabled).
