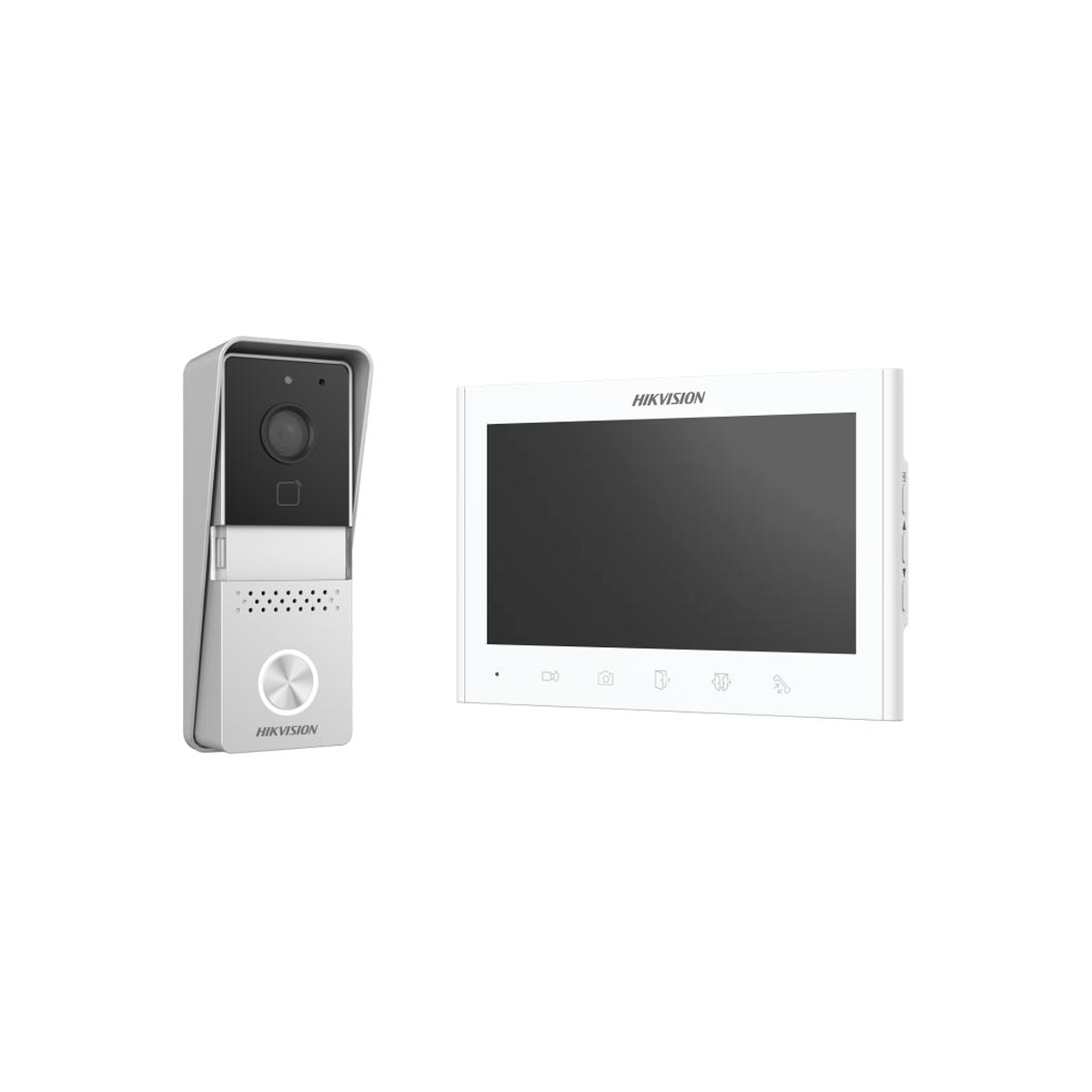

Hikvision 2 Wire Analog Kit DS-KIS102-P/Surface

Technical Specification

Door Station

Video Parameters

• Lens: 800 TVL
• Field of View (FOV):
  • Horizontal: ≤110∘
  • Vertical: ≤65∘

Capacity Parameters

• Card Capacity: 50

General

• Working Temperature: $-30°C\text{ to}60°C$ (−22°F to140∘F)
• Dimensions (W × H × D): $63\text{mm × 151 mm × 41}\text{ mm}$ (2.48″ × 5.94″ × 1.61$\text{“}$)
• Protective Level: IP55

Indoor Station

Display Parameters

• Resolution: $1024\times 600$
• Screen Size: 7-inch

General

• Power Supply: $100\text{ to}240\text{ VAC}$, $50\text{ to}60\text{ Hz}$
• Power Consumption: $<13\text{ W}$
• Working Temperature: $-10°C\text{ to}50°C$ (14°F to122∘F)
• Working Humidity: $10\%\text{ to}90\%$ (no-condensing)
• Dimensions (W × H × D): $184\text{mm × 123}\text{mm × 20}\text{ mm}$ (7.24″ × 4.84″ × 0.787$\text{“}$)
