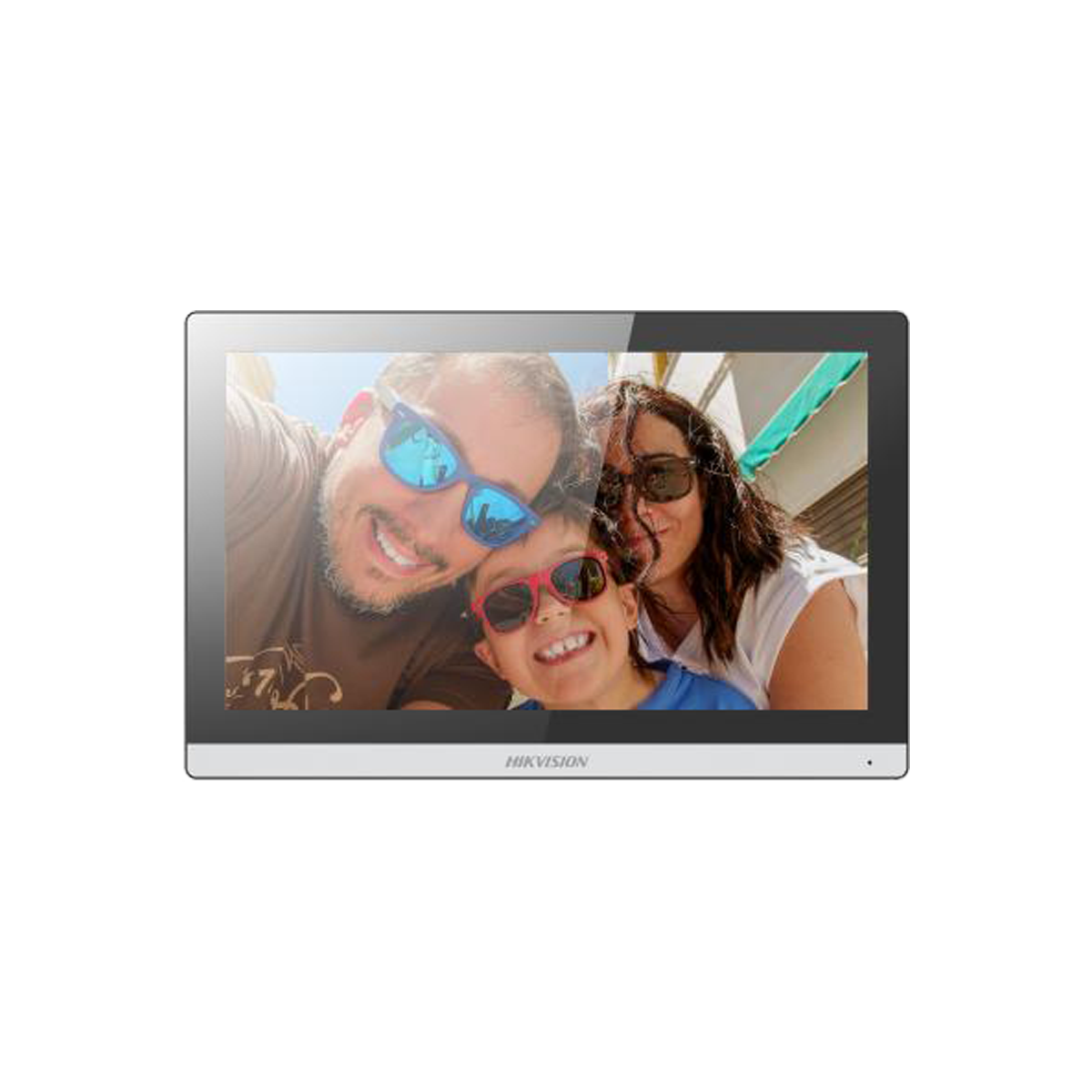

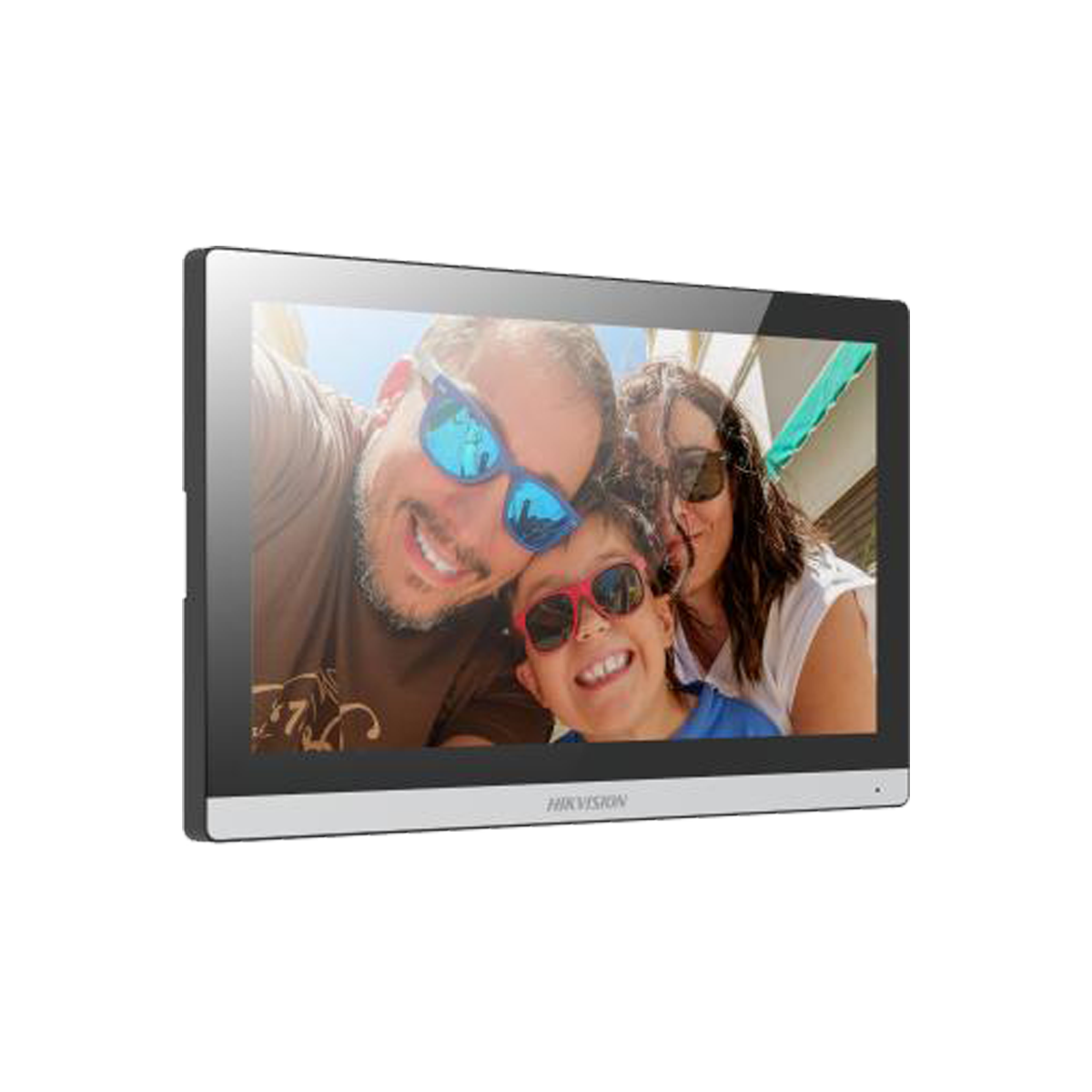

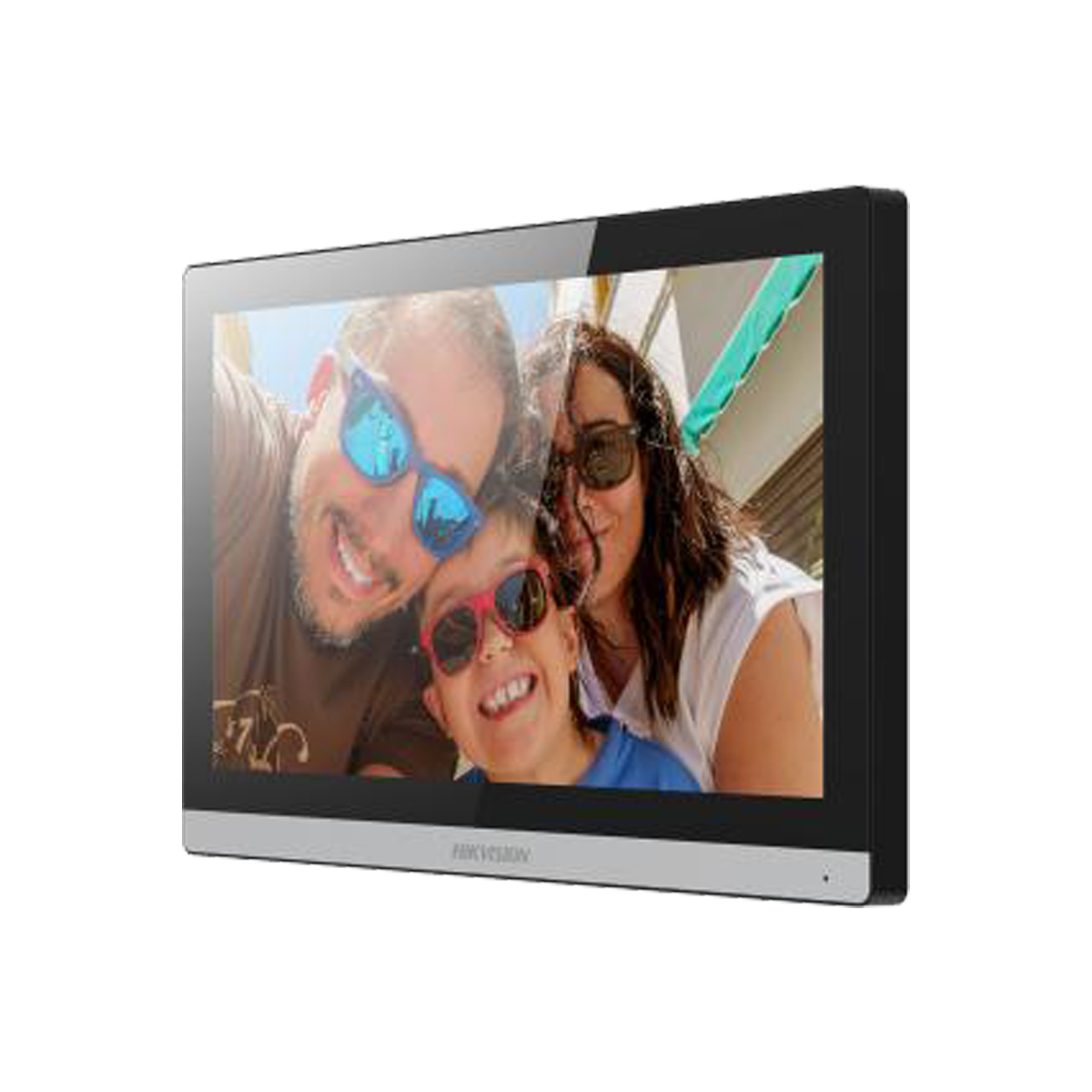

Hikvision 4-Wire Hybrid HD Indoor Station DS-KH6352-WTDE6(B)

المواصفات الفنية

System Parameters

• Operating System: Embedded Linux
• ROM: 32 MB
• RAM: 128 MB
• Processor: Embedded high-performance processor

Display Parameters

• Screen Size: 7-inch
• Operation Method: Capacitive touch screen
• Type: Colorful TFT
• Resolution: 1024 × 600
• Luminance: 250 cd/m² (Typ)
• Viewing Angle: Horizontal 160°, vertical 130°
• Contrast: 700 (Typ)

Audio Parameters

• Audio Input: 1 built-in omnidirectional microphone
• Audio Compression Standard: G.711U, G.711A
• Audio Output: 1 built-in loudspeaker
• Audio Compression Bitrate: 64 Kps
• Audio Quality: Noise suppression and echo cancellation

Capacity

• Linked Indoor Extensions Capacity: 2
• Linked Doorphone Capacity: 2 analog doorphones
• Analog Camera: 1

Network Parameters

• Wi-Fi: 802.11 b/g/n

Device Interfaces

• Alarm Input: 2
• TF Card: Supports TF card, up to 128 GB
• Four-Wire Interface: 4
• Power Interface: 1
• Debugging Port: 2

General

• Buttons: 0 physical buttons
• Installation: Surface mounting
• Weight:
  • With Package: 708g (1.56 lb)
  • Without Package: 260 g (0.5973 lb)
• Working Temperature: -10 °C to 50 °C (14 °F to 122 °F)
• Working Humidity: 10% to 90% (non-condensing)
• Dimensions (W × H × D): 175 mm × 113.5 mm × 18.1 mm (6.89″ × 4.47″ × 0.71″)
• Power Supply: 12 VDC
• Application Environment: Indoor
• Power Consumption: $\le$5 W
• Language Support: English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese (Brazil), Spanish, Hebrew, Romanian, Turkish, Estonian, Danish, Swedish, Norwegian, Finnish, Vietnamese, Croatian, Slovenian, Serbian, Arabic, Portuguese (Portugal), Lithuanian, Uzbek, Kazakh, Mongolian, Ukrainian, Latvian, Traditional Chinese
• Material: Plastic
