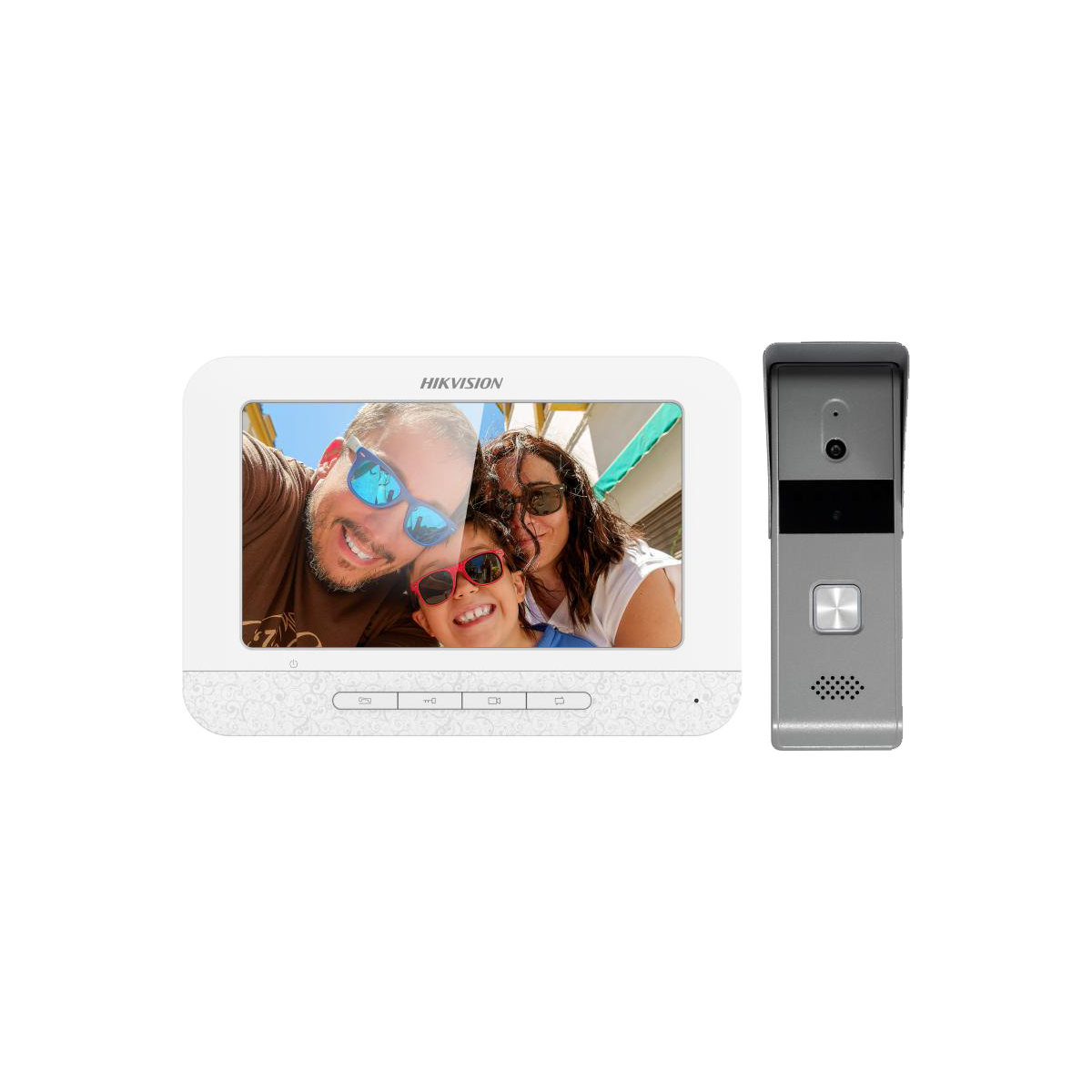

Hikvision Villa Analog Kit DS-KIS203T

المواصفات الفنية

Door Station

Video Parameters

• Resolution: $1920\times 1080$
• Stream Resolution: $960\times 576$
• Lens: $1/2.7\text{” CMOS}$
• Field of View (FOV):
  • Horizontal: 66.2∘
  • Vertical: 37.2∘

Audio Parameters:

• Audio Input: Built-in omnidirectional microphone
• Audio Output:Built-in loudspeaker

Device Interfaces

• I/O Output: 1 relay output
• Four-wire: 1-ch video input, 1-ch audio input/output, 1-ch power supply, 1-ch grounding

General

• Power Supply:$12\text{VDC}$
• Power Consumption: Max. $5\text{W}$
• Working Temperature: −10°C to55∘C (14°F to131∘F)
• Working Humidity:$10\%\text{to}90\%$
• Dimensions: 128 mm$\text{× 42 mm}24.8\text{mm}$
• Protective Level: IP65

Indoor Station

Display Parameters

• Operation Method: Physical button
• Type: 7-inch colorful TFT LCD
• Resolution: $800\times 480$

Audio Parameters

• Audio Input:Built-in omnidirectional microphone
• Audio Output:Built-in loudspeaker
• Audio Quality: Noise suppression and echo cancellation

General

• Power Supply:$12\text{VDC}$
• Power Consumption: $\le 5\text{W}$
• Working Temperature: −10°C to55∘C (14°F to131∘F)
• Working Humidity:$10\%\text{to}90\%$
• Dimensions (W × H × D): $195.8\text{× 132.8 mm ×}\text{18.39}\text{mm}$ (7.7″ × 5.2″ × 0.7$\text{“}$)
