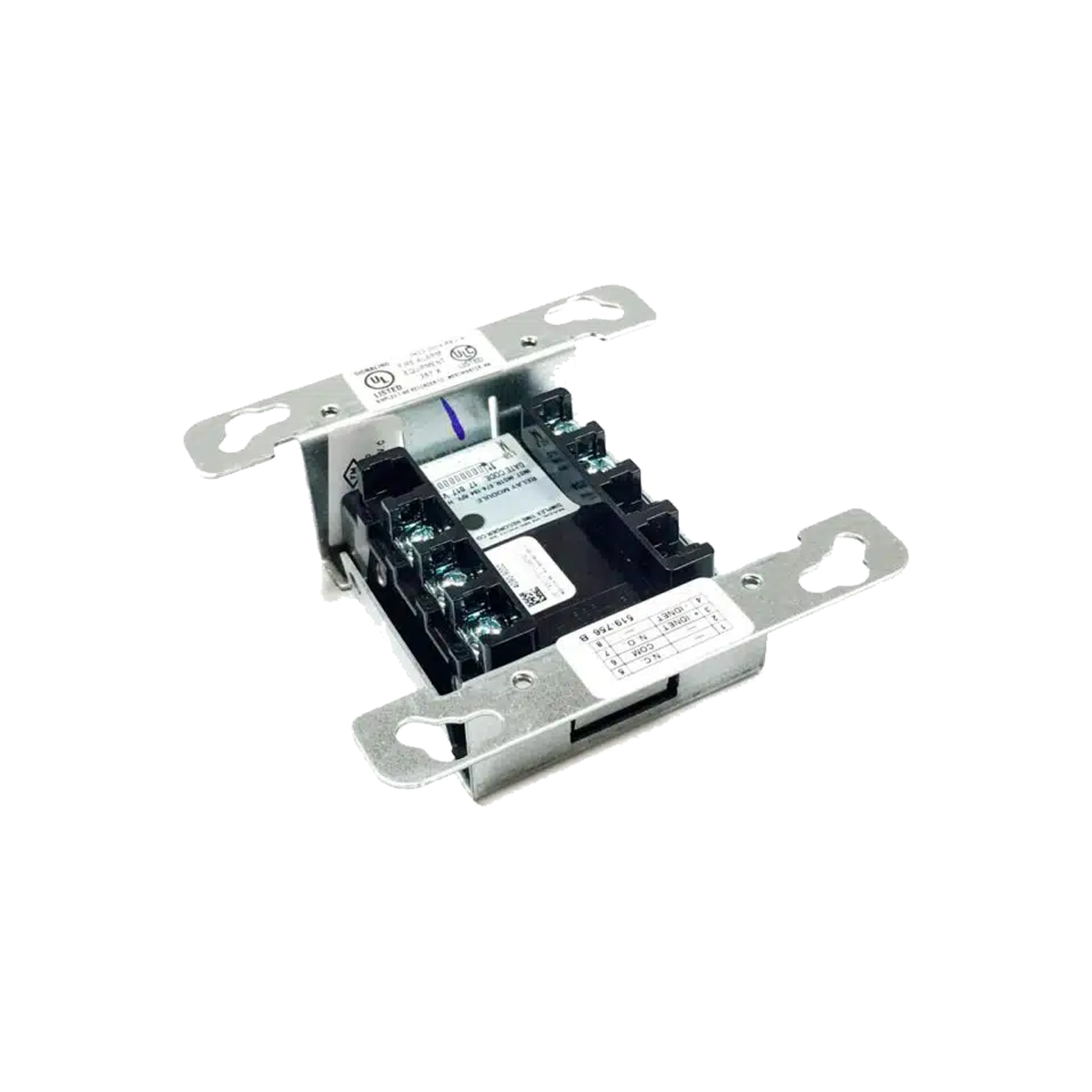

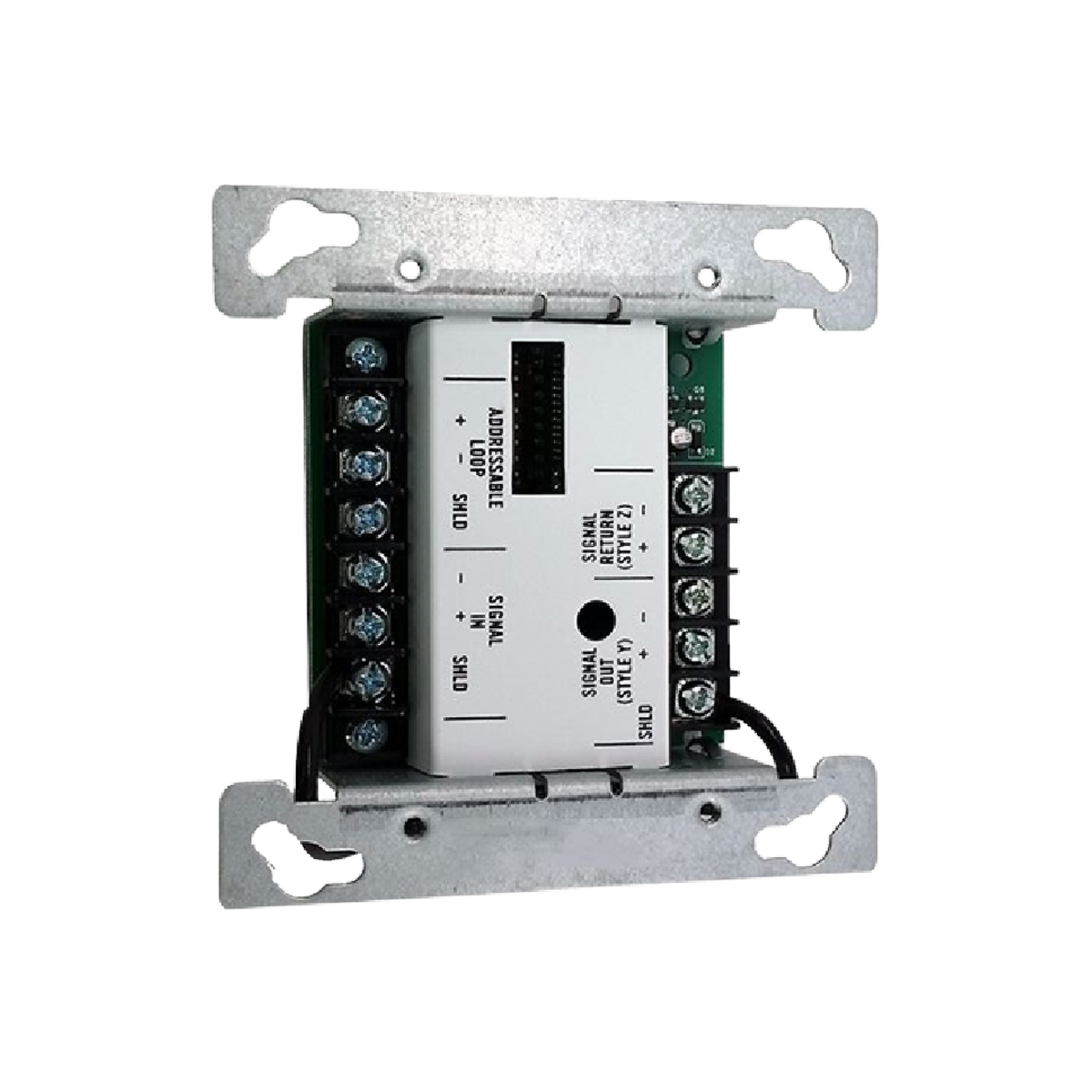

Simplex 4090-9007 Control Module
- الاتصالات: اتصالات IDNet، عنوان واحد
- تصنيفات خرج NAC: أجهزة التطبيقات الخاصة أو 24 فولت تيار مستمر منظم = 0.5 أمبير؛ تصنيف صوتي للسماعات = 0.5 أمبير عند 25 فولت RMS (12.5 واط) أو 70.7 فولت RMS (35 واط)
- اتصالات IDNet، مرجع عام: 10,000 قدم (3048 م) أقصى مسافة إجمالية للأسلاك
- الأبعاد: 4 بوصة × 4 1/8 بوصة × 1 1/4 بوصة عمق (102 ملم × 105 ملم × 32 ملم)
- نطاق درجة الحرارة: 32 درجة إلى 120 درجة فهرنهايت (0 درجة إلى 49 درجة مئوية) للتشغيل الداخلي فقط
المواصفات الفنية
Electrical
- Communications: IDNet communications, one address.
- Channel loading: Consumes two-unit loads. Each Signal IAM reduces the IDNet loop capacity by two addresses. Refer to the IDNet source for the total available address capacity.
- NAC input choices: Nominal 24 VDC from FACU NAC or NAC extender; 25 VRMS or 70.7 VRMS from compatible listed audio source.
- NAC output ratings: Special application or regulated 24 VDC appliances = 0.5 A; Audio rating for speakers = 0.5 A at 25 VRMS (12.5 W) or 70.7 VRMS (35 W).
- Appliance compatibility details: Compatible with Simplex strobe synchronization. Not compatible with SmartSync two-wire horn/strobe control or with TrueAlert addressable control. For horn/strobe appliance applications, use four-wire appliances, see datasheet S4903-0011. For horn control, select horn operation as free-run.

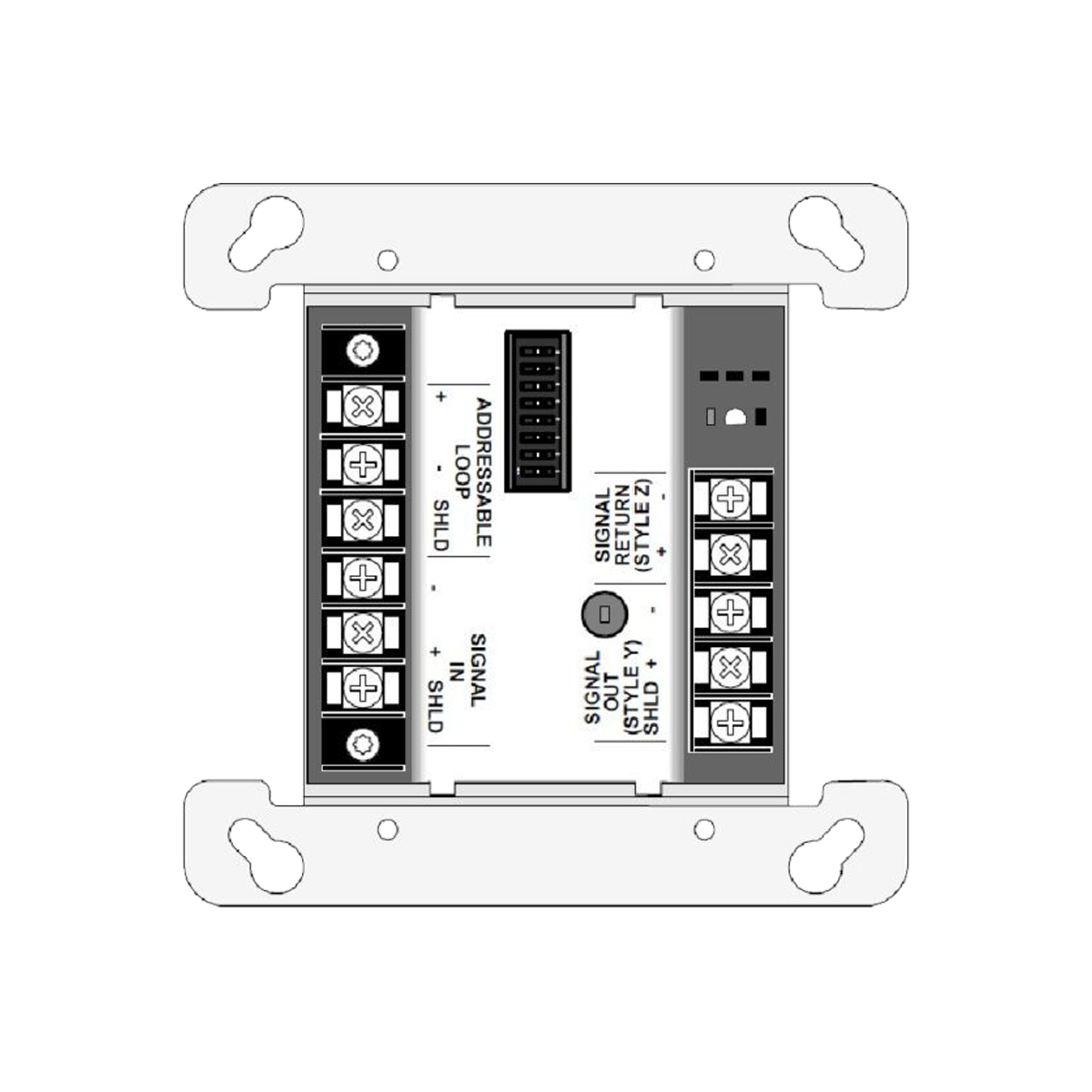

- Wire connections: Screw terminals for in/out wiring, 18 to 12 AWG wire (0.82 mm² to 3.31 mm²).
- End-of-line resistor: For Class B NAC, 10 Kohm, 1/2 W, 4081-9008.
Wiring Distance Information Reference
- IDNet communications, general reference: 2500 ft (762 m) maximum distance from FACU; 10,000 ft (3048 m) maximum total wiring distance, including T-Taps on Class B wiring.
- Note: IDNet communications specifications may vary depending on the host FACU; refer to specific FACU product documentation for details.
NAC wiring distance considerations: Wiring connections from the NAC Riser, through the Signal IAMs, and to the notification appliances are branch circuits on the NAC Riser and must be calculated accordingly. Wiring distances are limited by wire 1size and the allowable voltage drop from the FACU to the Signal IAM, and then to the farthest notification appliance for each branch connection. The Signal IAM voltage drop is considered negligible for wiring distance calculations.
Mechanical
- Dimensions: 4 in. x 4 1/8 in. x 1 1/4 in. D (102 mm x 105 mm x 32 mm).
- Temperature range: 32° to 120° F (0° to 49° C) indoor operation only.
- Humidity range: Up to 93% RH at 100° F (38° C).
