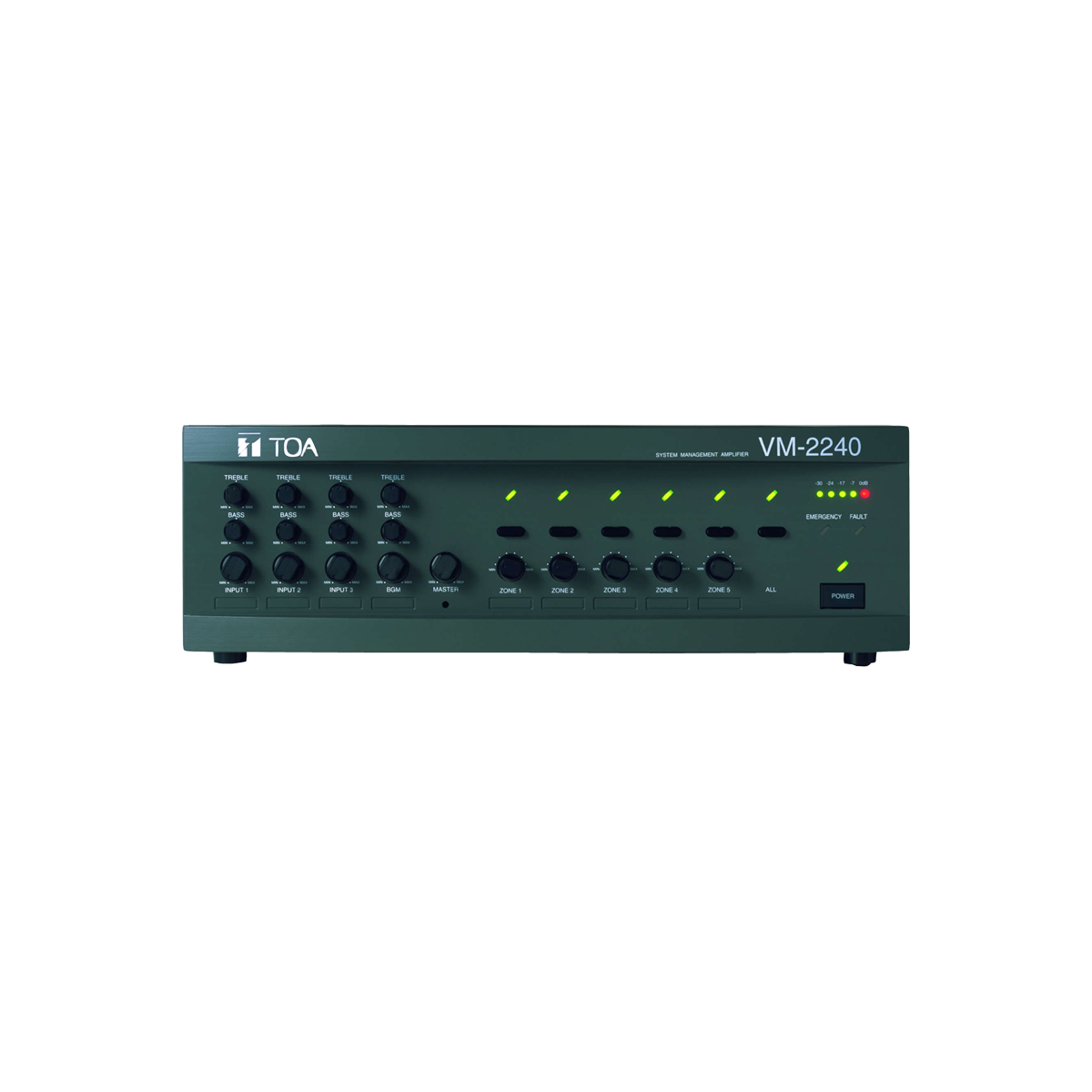

System Managing Amplifier. VM-2240

The VM-2240 is a versatile amplifier designed for mounting in an EIA-Standard equipment rack (3-unit size). It offers comprehensive features for both general and emergency broadcasting.

• Amplification Power: $240\text{W}$ output.
• Speaker Outputs: Features $5$ switchable high impedance speaker zones with adjustable attenuators.
• Scalability: Up to $9$ units can be combined to increase total output power and the number of zones.
• Audio Inputs:
  • Comes with $4$ audio inputs, including a background music (BGM) input.
  • $4$ input channels have volume and bass/treble control on the front panel.
  • Both BGM inputs feature level pre-adjustment.
  • Routing of the $3$ microphone/line level inputs and the telephone paging input to specific zones can be pre-set.
• Emergency Broadcasting:
  • Permits Emergency Broadcasts based on the EN60849 Standard, providing pre-recorded voice instructions. (Requires optional EV-200M).
  • Broadcasts can be made from the amplifier itself or an optional RM-200M Remote Microphone.
  • Can be remotely controlled from external equipment.
• Surveillance Function: For $100\text{V}$ applications, the unit includes a surveillance function that automatically checks the system for failures. (Requires optional SV-200MA).
• Additional Features: Includes an emergency power input, remote power control, and $4$ built-in chimes.
