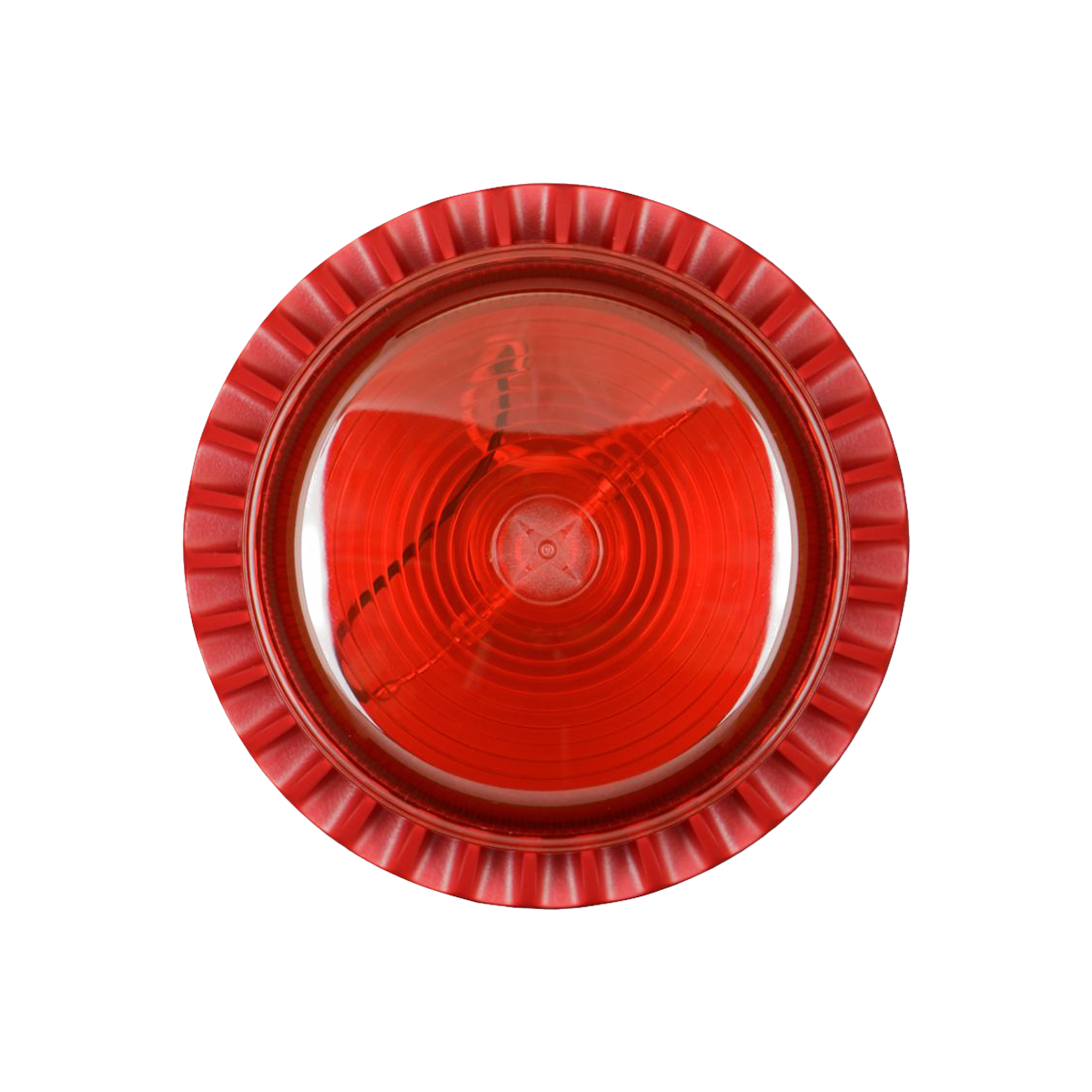

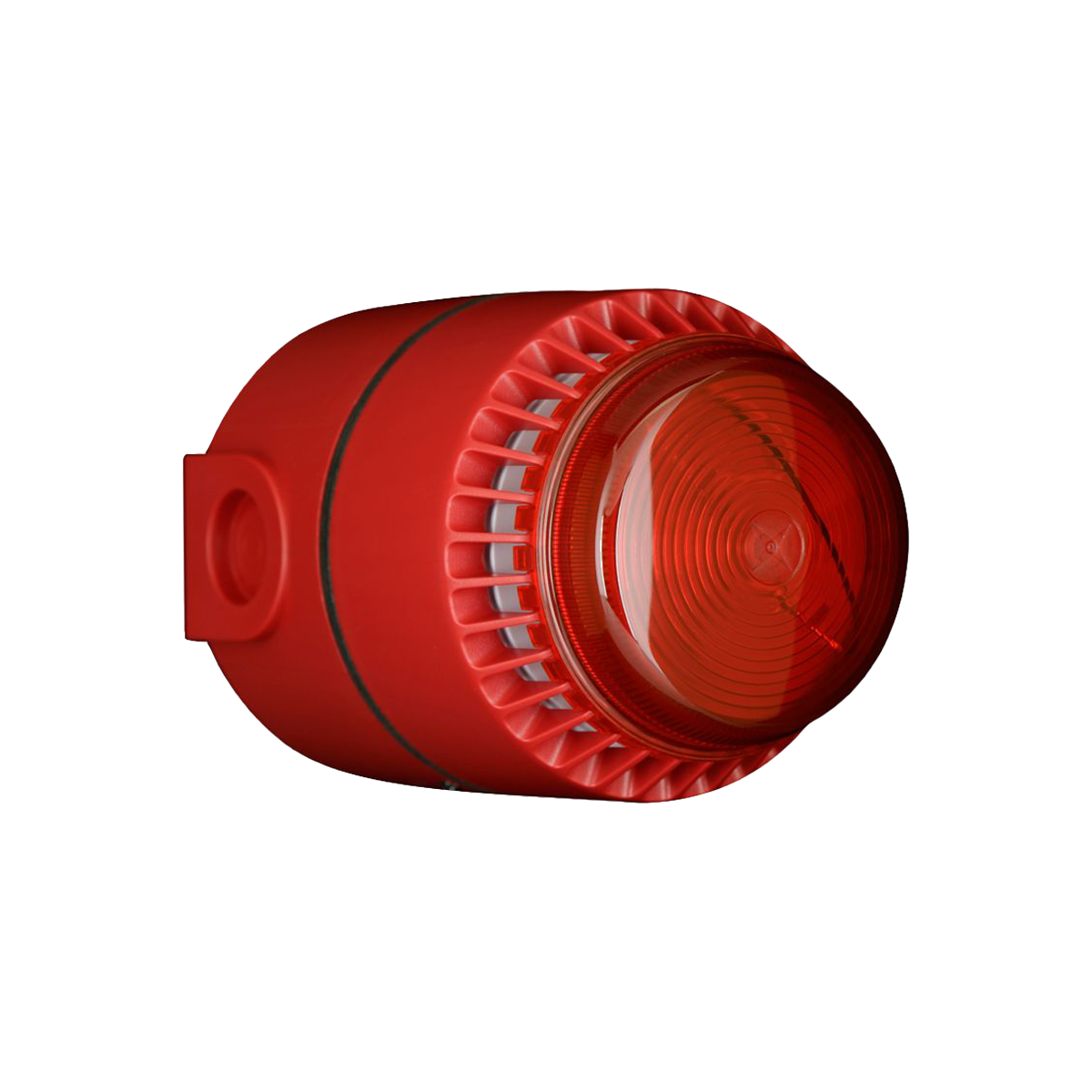

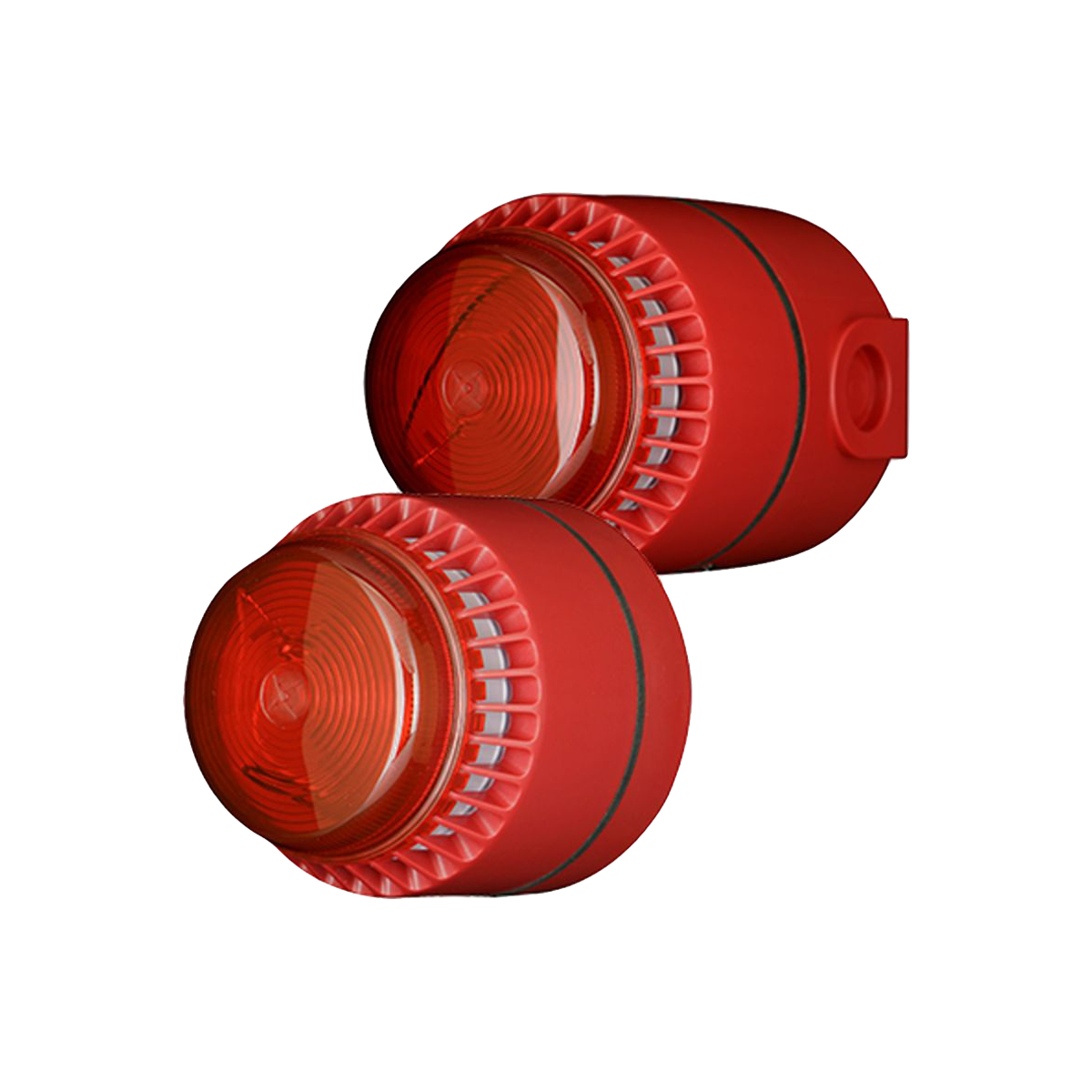

Eaton Cooper Conventional Xenon Sounder Beacon FL-RL-R-D
- Sound Output: 101 dB
- Degree of Protection: IP65
- Operating Temperature: -10 °C to 55 °C
- System Typology: Conventional (Non-addressable)
- EN Certification Standards: EN54 Pt3 (Fire Alarm Sounders)
Technical Specifications
- Nominal Voltage:
- Type of Current: DC
- Electricity Consumption: 0.111 A
- Power: 2.644 W
- Lens Color: White
- Lamp Type: Xenon
- Sound Output: 101 dB
- Type of Optical Signal: Flash light
- Type of Acoustic Signal Device: Sound generator
- Type of Acoustic Signal: Programmable
- Mounting Method: Surface mounting
- Color Housing: Red
- Frequency Sound Signal:
- MAX: 1.2 Kilo Hertz
- MIN: 0.5 Kilo Hertz
- Alarm Current – MAX: 111 mA
- Construction Material: ABS
- EN Certified Tones: 6
- Humidity (Non-Condensing):
- Operating Temperature:
- System Typology: Conventional (Non-addressable)
- Tones: 32
- Voice Tones: No
- Product Branding: Eaton Cooper
- Degree of Protection: IP65
- Suitable For: Wall Mounting
- Cable Entry: Rear
- Light Color: Red
