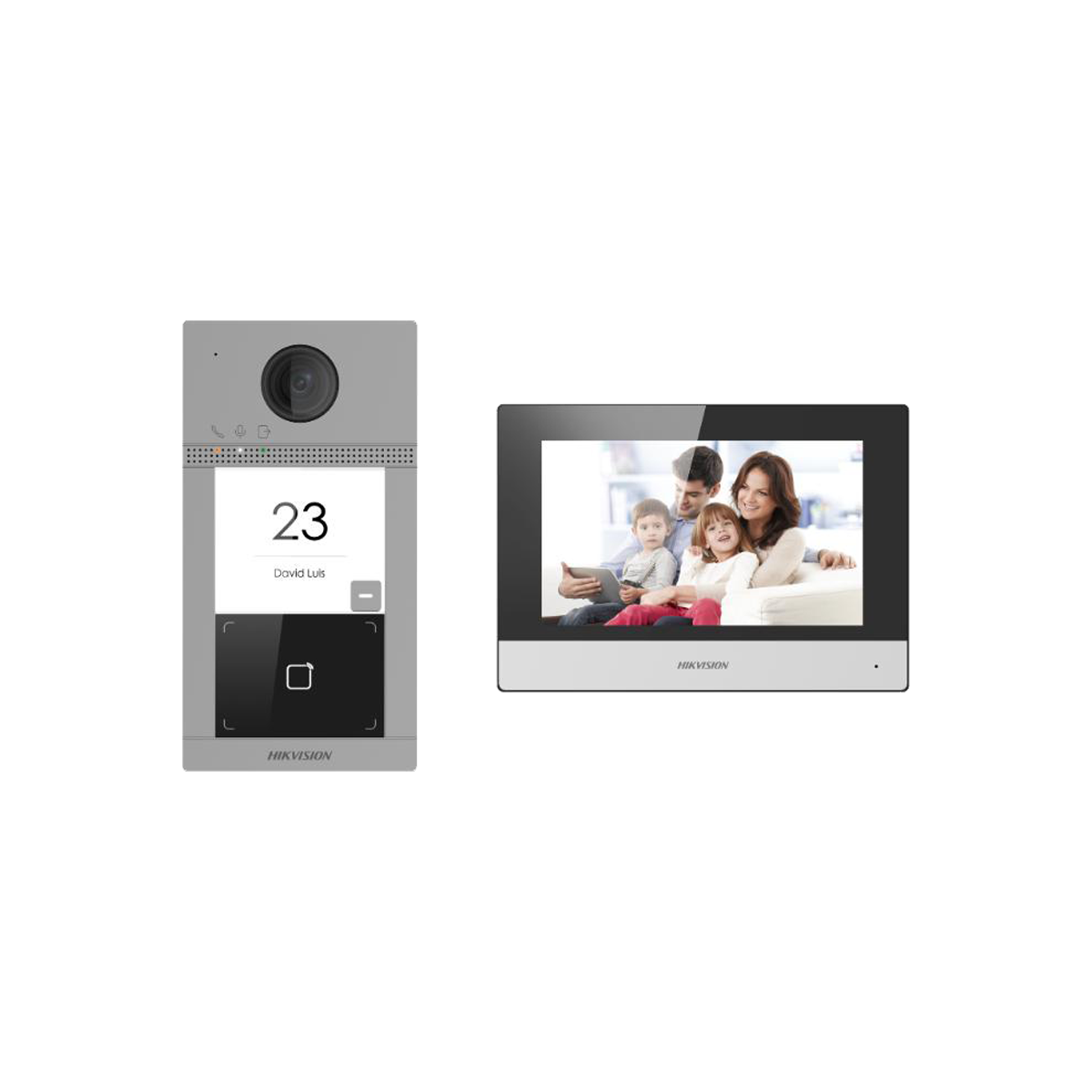

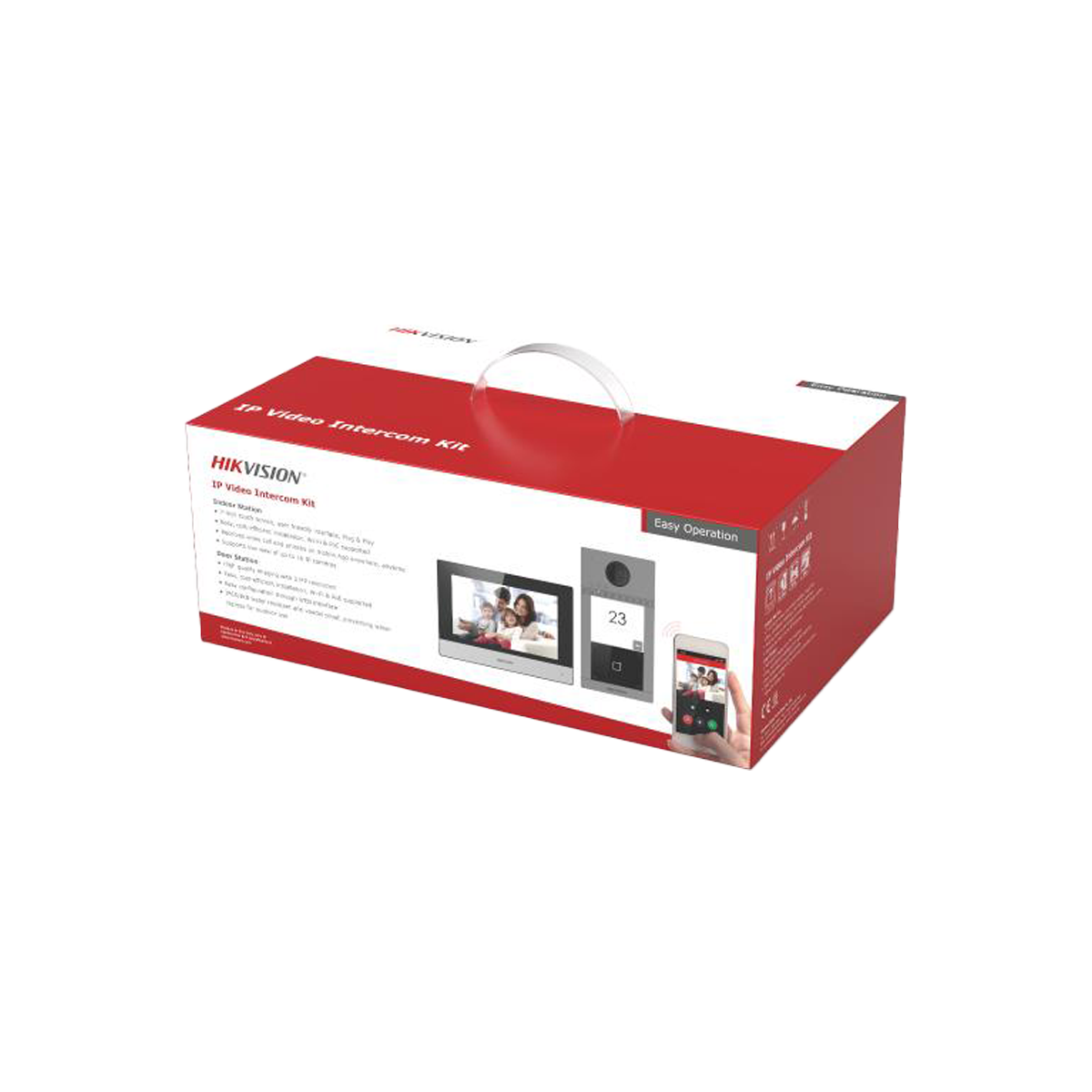

Hikvision IP video intercom kit DS-KIS604-P(C)

Door Station Specifications

System Parameters

• Operating System: Embedded Linux
• Flash: 32 MB
• RAM: 256 MB

Video Parameters

• Supplement Light: IR supplement
• Resolution:
  • Mainstream: 1920 × 1080
  • Sub Stream: 640 × 480
• Lens: 1
• Wide Dynamic Range (WDR): Supported
• Field of View (FOV): Horizontal: 124°, Vertical: 75°
• Video Compression Standard: H.264

Audio Parameters

• Audio Input: Built-in omnidirectional microphone
• Audio Output: Built-in loudspeaker (more than 80 dB within 30 cm)
• Volume Adjustment: Adjustable
• Audio Compression Standard: G.711 U, G.711 A
• Audio Compression Rate: 64 Kbps
• Audio Intercom: Two-way audio communication
• Audio Quality: Noise suppression and echo cancellation

Capacity Parameters

• User Capacity: 2000

Network Parameters

• Network Protocol: TCP/IP, RTSP
• Wi-Fi: 802.11 b/g/n
• Wired Network: 10/100 Mbps self-adaptive Ethernet

Device Interfaces

• Network Interface: 1
• RS-485: 2
• Lock Control: 2
• Exit Button: 2 Max.
• Door Contact: 2
• Alarm Input: 4
• Power Interface: 1
• TAMPER: 1
• TF Card: 1 (reserved)

General

• Button: 1
• Indicator: 3
• Power Consumption: < 10 W
• Power Supply: IEEE802.3af Standard PoE, 12 VDC
• Working Temperature: -40°C to 53°C (-40°F to 127.4°F)
• Working Humidity: 10% to 95%
• Dimension: 174 mm × 91 mm × 29 mm
• Installation: Surface mounting
• Application Environment: Outdoor
• Protection Level: IP65, IK08
• Weight: 380 g

Indoor Station Specifications

System Parameters

• Operating System: Embedded Linux
• Memory (RAM): 128 MB
• Flash (ROM): 32 MB

Display Parameters

• Display Screen: 7-inch colorful TFT screen
• Display Resolution: 1024 × 600
• Operation Method: Capacitive touch screen

Audio Parameters

• Audio Input: Built-in omnidirectional microphone
• Audio Output: Built-in loudspeaker
• Audio Quality: Noise suppression and echo cancellation
• Audio Compression Standard: G.711 U
• Audio Compression Rate: 64 Kbps

Network Parameters

• Network Interface: 1 RJ-45 10/100 Mbps self-adaptive
• Wired Network: 10/100 Mbps self-adaptive
• Wireless Network: Wi-Fi 802.11 b/g/n
• Protocol: TCP/IP, SIP, RTSP

Device Interfaces

• RS-485: 1
• Alarm Input: 8-ch alarm inputs
• Relay Output: 2
• TF Card: Max to 32 GB, SD 2.0 or lower version

General

• Power Consumption: $\le$ 6 W
• Power Supply: Standard PoE, 12VDC
• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity: 10% to 90%
• Dimension (L x W x H): 200 mm × 140 mm × 15.1 mm (7.9″ × 5.5″ × 0.6″)
