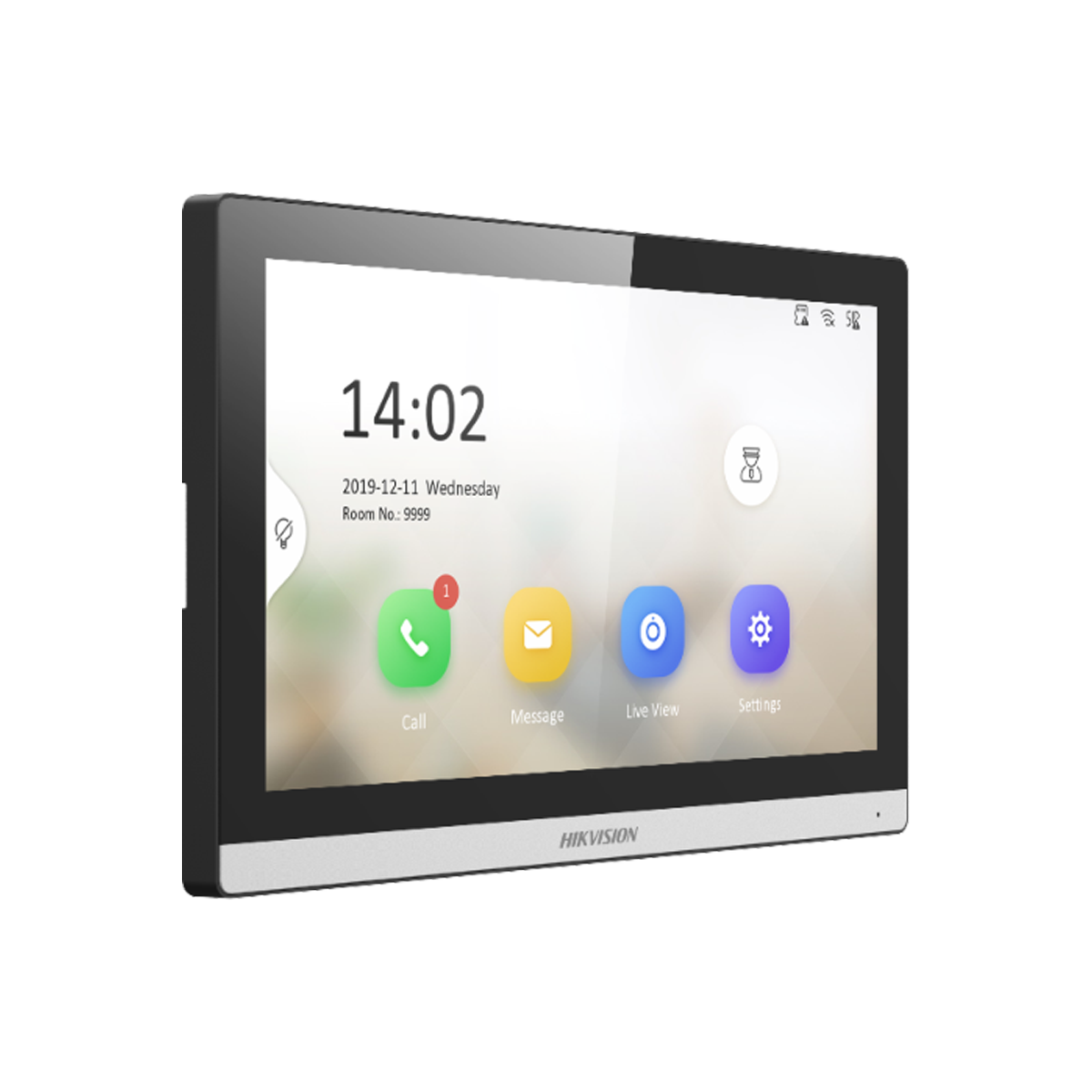

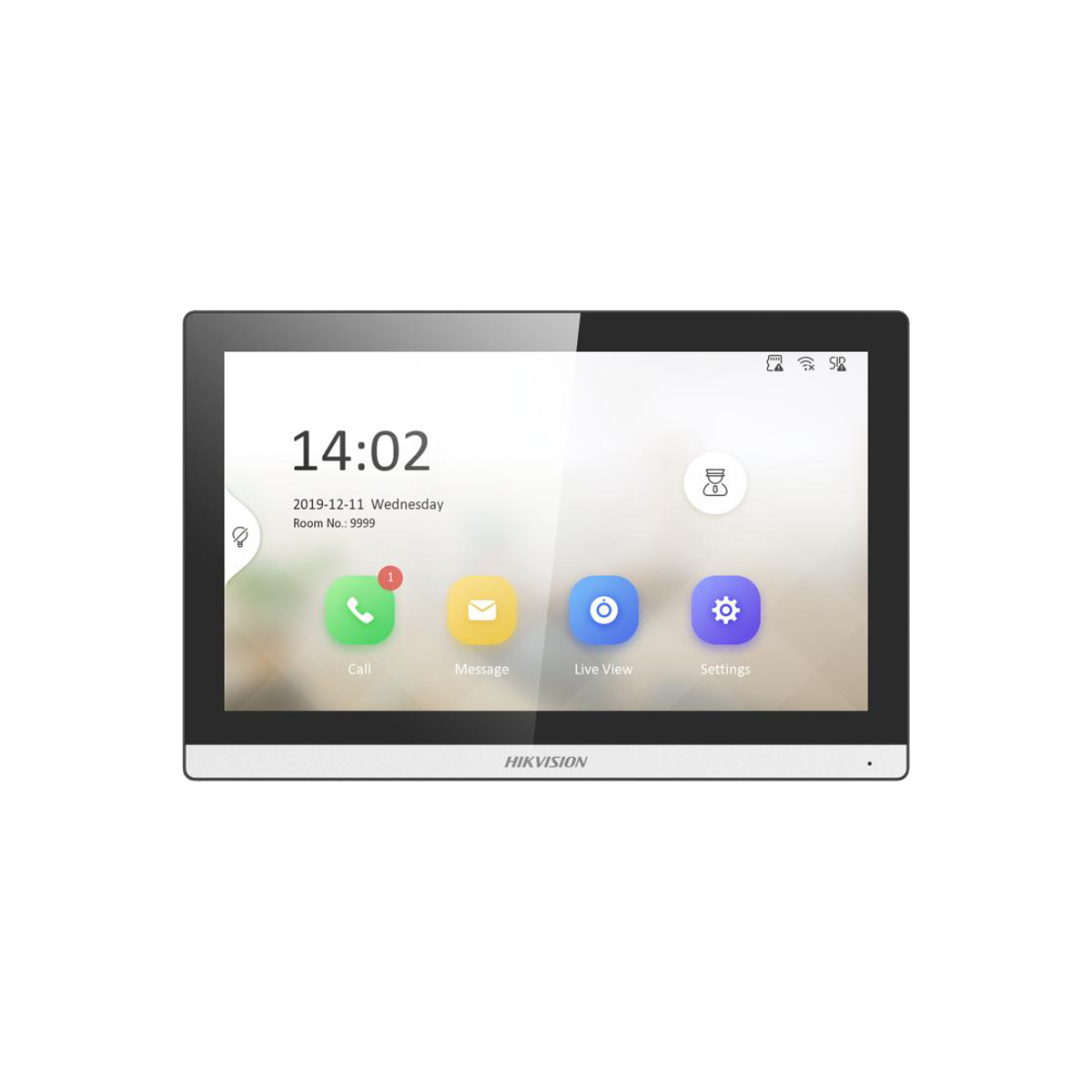

Hikvision KH6 Series IP-Based Indoor Station DS-KH6350-TE1
- 7-inch TFT touch screen with 1024 × 600 resolution
- Convenient Hik-Connect APP Mobile Control
- Receive calls, open the door, and live view remotely
- Easy to use without PC
- Easy wizard for quick setup
- Configure the whole system on one touch screen
- Rich functions and extensions
- Live view of the door station and cameras in public areas
- Support voice messages when there is no response from the indoor station
- Receive alarms by linkage with a alarm system and notify the center to handle in time
- Elevator access control
Technical Specification
System Parameters
- Operating System: Linux
- ROM: 32 MB
- RAM: 128 MB
- Processor: Embedded high-performance processor
Display Parameters
- Screen Size: 7-inch
- Operation Method: Capacitive touch screen
- Type: Colorful TFT
- Resolution: 1024 × 600
Video Parameters
- Lens: Not specified
- Resolution: Not specified
- FOV (Field of View): Not specified
- Wide Dynamic Range (WDR): Not specified
- Video Compression Standard: H.265; H.264
- Focal Length: Not specified
Audio Parameters
- Audio Input: 1 built-in omnidirectional microphone
- Audio Compression Standard: G.711 U, G.711 A, Opus, AAC-LD, AAC-LC, G.726, G.722.1
- Audio Output: 1 built-in loudspeaker
- Audio Compression Bitrate: 64 Kbps
- Audio Quality: Noise suppression and echo cancellation
- Volume Adjustment: Adjustable
Capacity
- Message Capacity: 200
- Notice Capacity: 16
- Linked Indoor Extensions Capacity: 16
Network Parameters
- Network Protocol: TCP/IP, SIP, RTSP
- Wi-Fi: Not specified
- Bluetooth: Not specified
- 3G/4G: Not specified
- Zigbee: Not specified
Device Interfaces
- Alarm Input: 8
- Network Interface: 1 RJ-45 10/100 Mbps self-adaptive
- TAMPER: Not specified
- RS-485: Not specified
- USB: Not specified
- TF Card: Supports TF card, up to 128 GB
- Alarm Output: Not specified
- Lock Control: 2 relays, Max. 30 VDC 0.3 A
General
- Button: Not specified
- Installation: Wall mounting, table mounting
- Indicator: Not specified
- Weight:
- Net Weight: 350 g (0.8 lb)
- Gross Weight: 675 g (1.5 lb)
- Protective Level: Not specified
- Working Temperature: -10 °C to 50 °C (14 °F to 122 °F)
- Working Humidity: 10% to 90% (non-condensing)
- Dimensions (W × H × D): 175 mm × 113.5 mm × 21 mm (6.9″ × 4.5″ × 0.83″)
- Battery: Not specified
- Application Environment: Indoor
- Power Consumption: ≤ 5 W
- Language Support: English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
