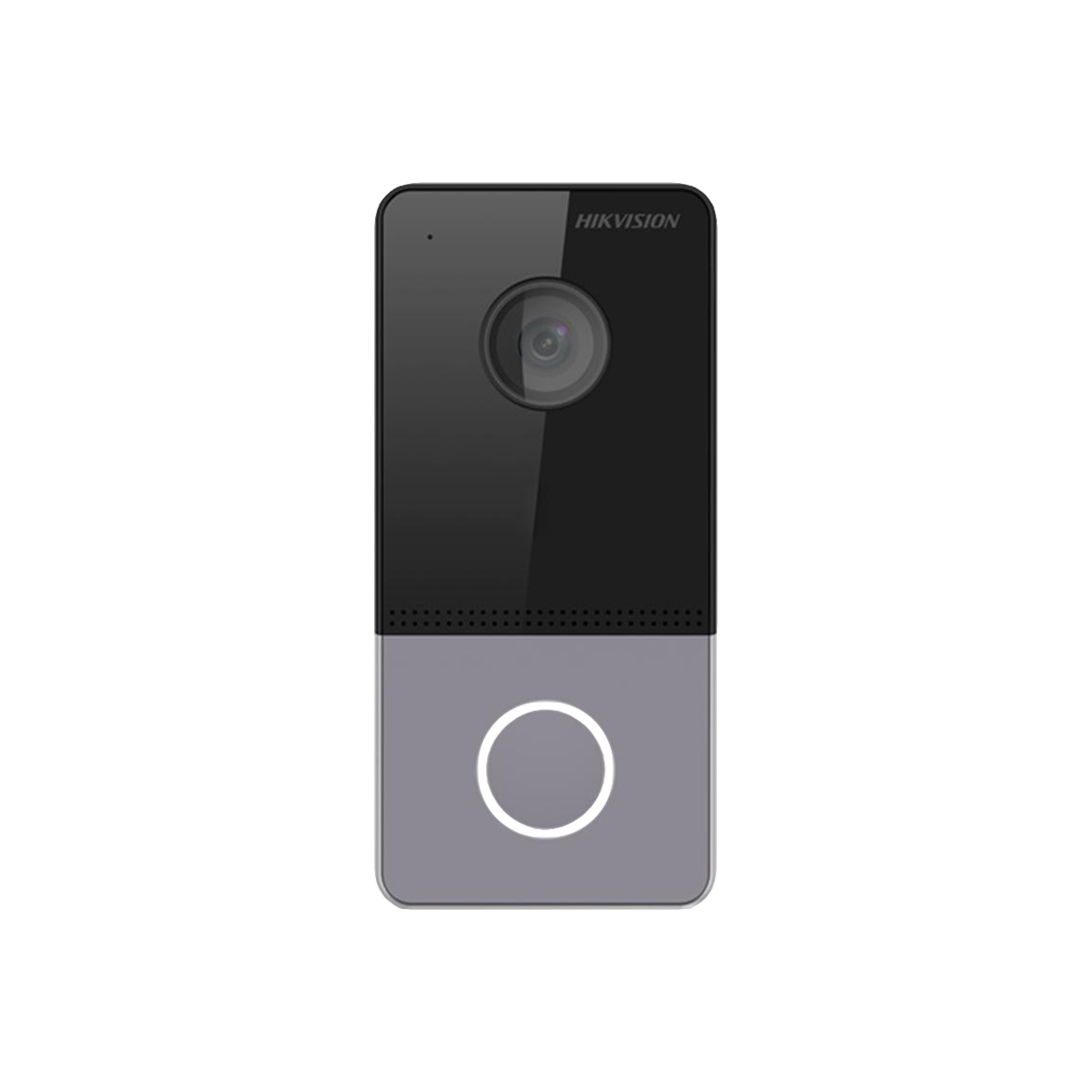

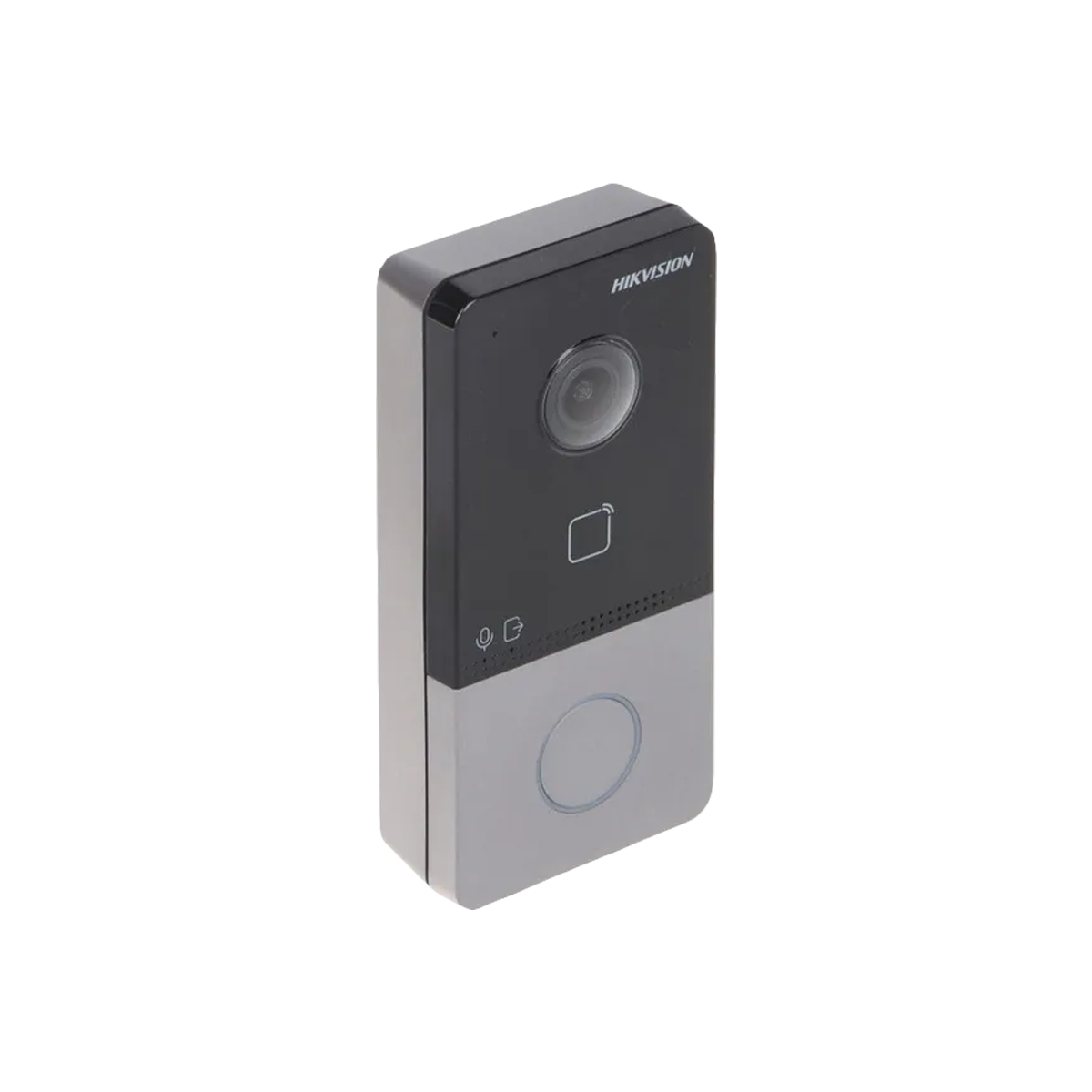

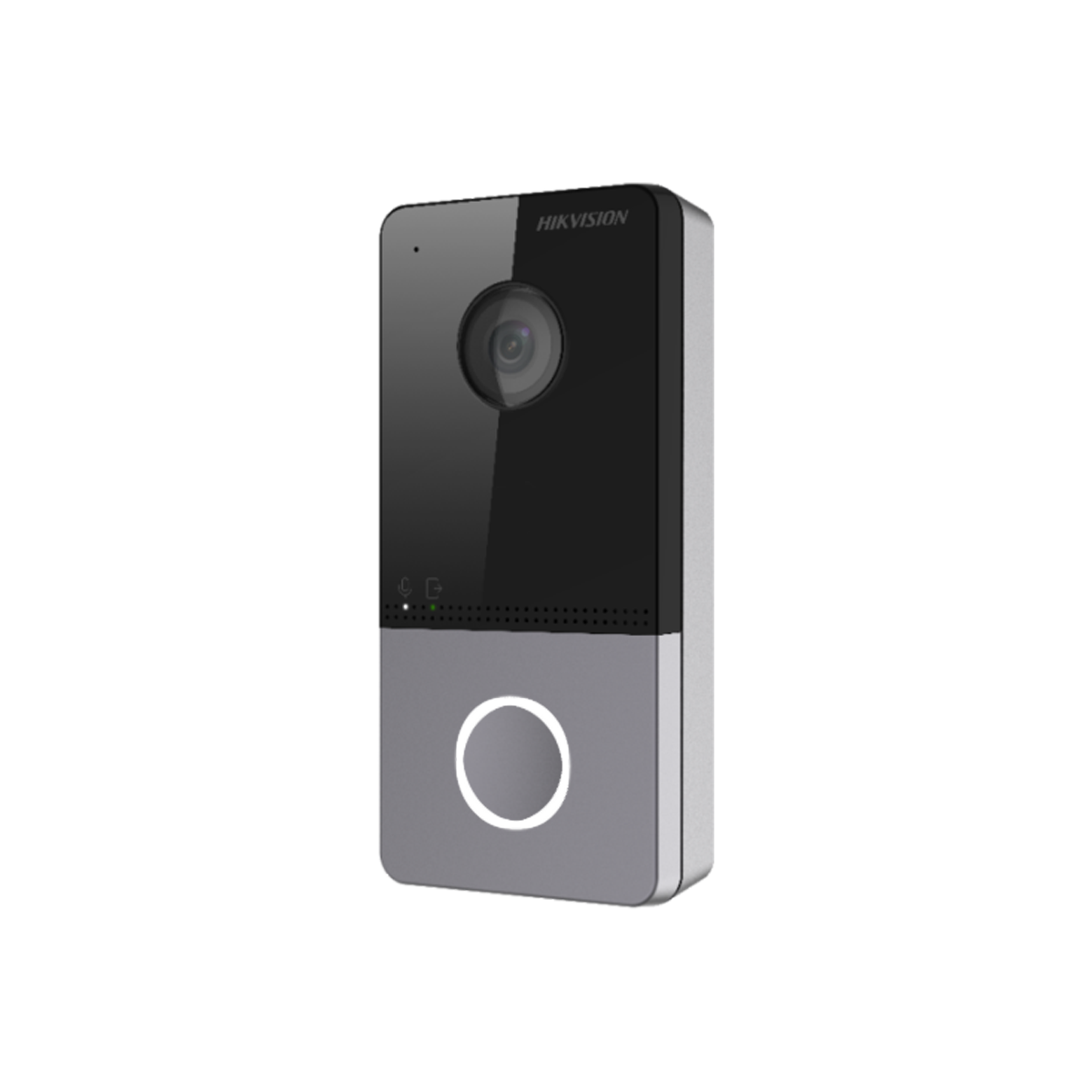

Hikvision POE Villa Door Station DS-KV6103-PE1(C)

Technical Specification

System Parameters

• Operating System: Linux
• ROM: 32 MB
• RAM: 256 MB
• Processor: Embedded high-performance processor

Display Parameters

• Screen Size: Not specified
• Operation Method: Not specified
• Type: Not specified
• Resolution: Not specified

Video Parameters

• Lens: 1
• Resolution:
  • Main Stream: 1920 × 1080p
  • Sub Stream: 640 × 480p
• FOV (Field of View): Horizontal: 131°, Vertical: 78°
• Wide Dynamic Range (WDR): Support 120 dB
• Supplement Light: IR light, up to 3 m
• Video Compression Standard: H.264; H.265; MJPEG

Audio Parameters

• Audio Input: 1 built-in omnidirectional microphone
• Audio Compression Standard: G.711 U, G.711 A, Opus, AAC-LD, AAC-LC, G.726, G.722.1
• Audio Output: 1 built-in loudspeaker
• Audio Compression Bitrate: 64 Kbps
• Audio Quality: Noise suppression and echo cancellation
• Volume Adjustment: Adjustable

Capacity

• User Capacity: Not specified
• Face Capacity: Not specified
• Card Capacity: Not specified

Network Parameters

• Network Protocol: TCP/IP, RTSP, IPv6, ONVIF
• Wi-Fi: Not specified
• Bluetooth: Not specified
• 3G/4G: Not specified

Device Interfaces

• Alarm Input: 4
• Network Interface: 1 RJ-45, 10/100 Mbps self-adaptive
• TAMPER: 1
• Exit Button: 1
• RS-485: 0
• USB: Not specified
• Wiegand: Not specified
• TF Card: Not specified
• Alarm Output: Not specified
• Lock Control: 1 relay, Max. 30 VDC 2 A
• Door Contact Input: 1

General

• Button: 1 physical button
• Installation: Surface mounting
• Indicator: Not specified
• Weight:
  • Net Weight: 0.180 kg
  • Gross Weight: 0.388 kg
• Protective Level: IP65
• Working Temperature: -40 °C to 53 °C (-40 °F to 127.4 °F)
• Working Humidity: 10% to 95% (non-condensing)
• Dimension (W × H × D): 138 mm × 65 mm × 27 mm (5.4″ × 2.6″ × 1.1″)
• Battery: Not specified
• Application Environment: Outdoor
• Power Consumption: ＜ 10 W
• Language Support: English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish
