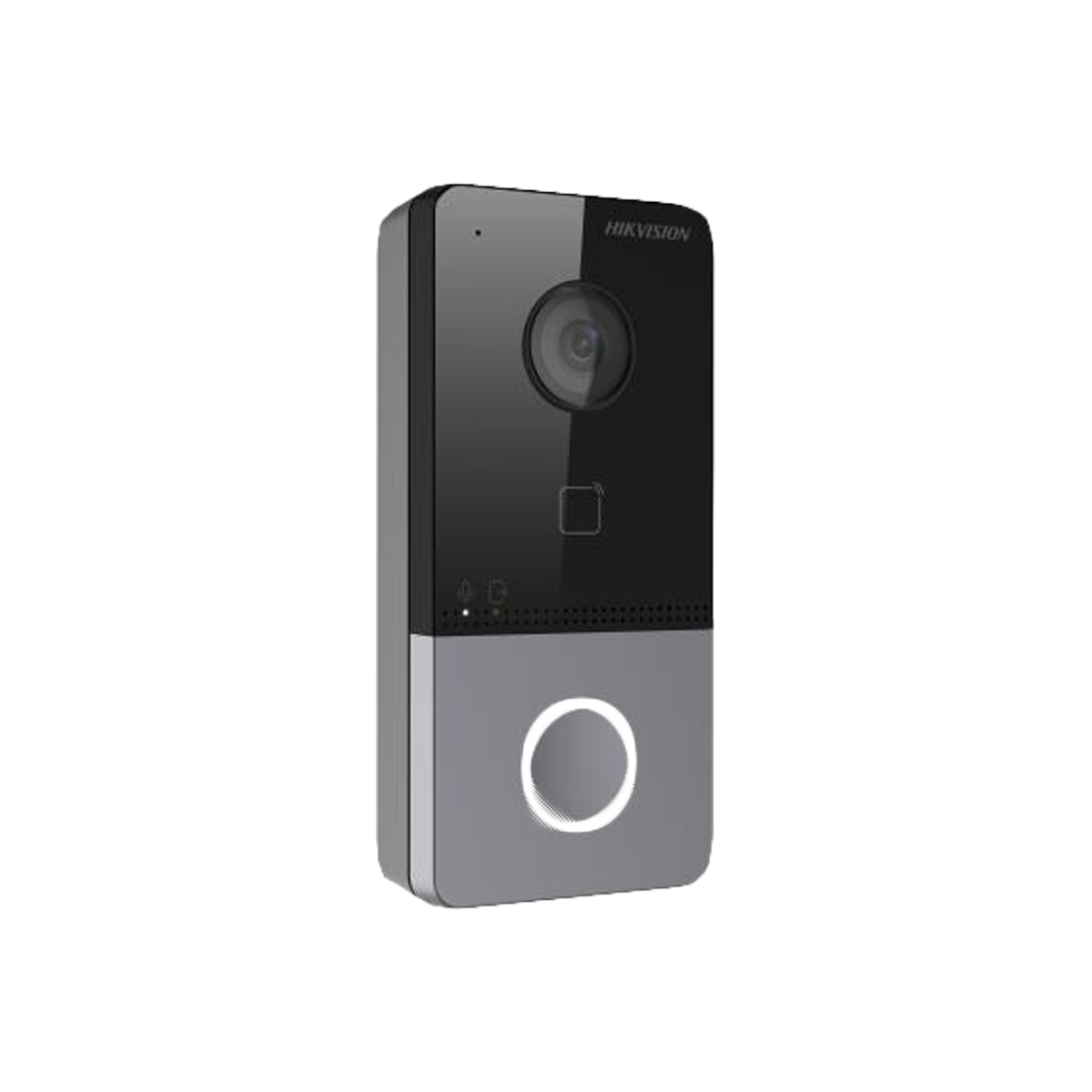

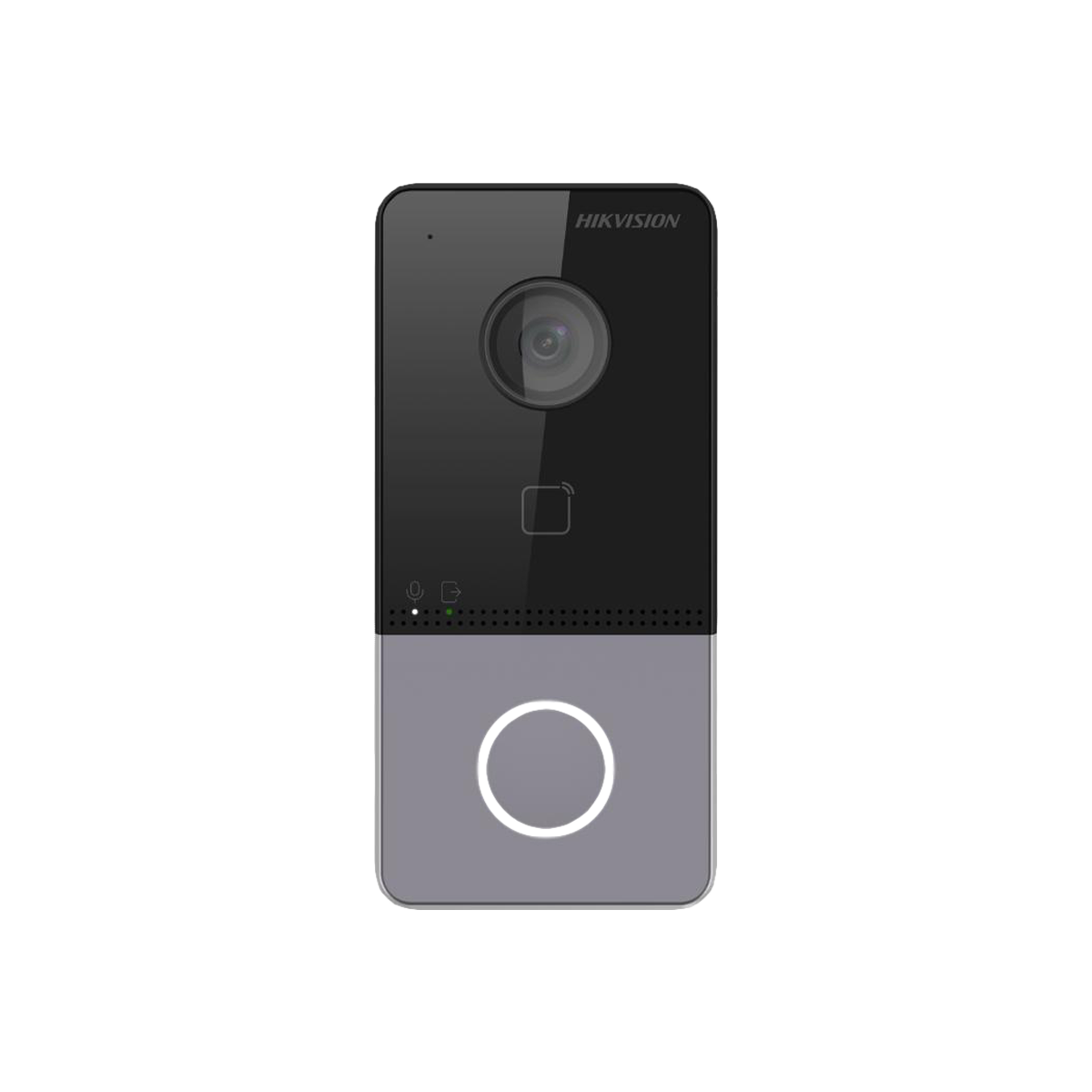

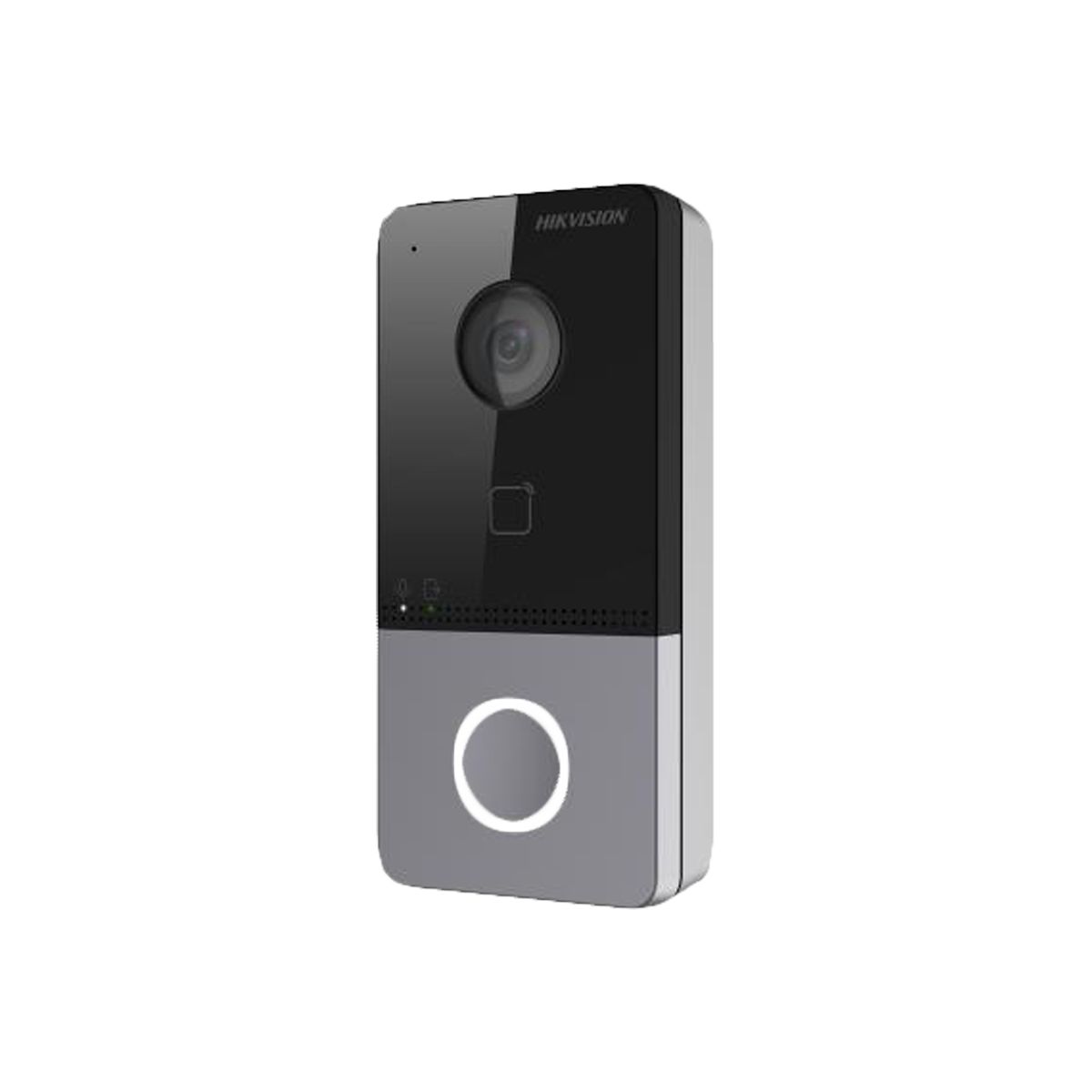

Hikvision POE/Wifi Villa Door Station DS-KV6113-WPE1(C)

Technical Specifications

System Parameters

• Operating System: Linux
• ROM: 32 MB
• RAM: 256 MB
• Processor: Embedded high-performance processor

Video Parameters

• Lens: 1
• Resolution:
  • Main Stream: 1920 × 1080p, 720p
  • Sub Stream: 640 × 480p
• Field of View (FOV):
  • Horizontal: 131°
  • Vertical: 78°
• Wide Dynamic Range (WDR): Support 120 dB
• Supplement Light: IR light, up to 3 m
• Video Compression Standard: H.264; H.265; MJPEG

Audio Parameters

• Audio Input: 1 built-in omnidirectional microphone
• Audio Output: 1 built-in loudspeaker
• Audio Compression Bitrate: 64 Kbps
• Audio Quality: Noise suppression and echo cancellation
• Volume Adjustment: Adjustable

Capacity

• User Capacity: 2000
• Card Capacity: 10000

Network Parameters

• Network Protocol: TCP/IP, RTSP, IPv6, ONVIF
• Wi-Fi: IEEE802.11b, IEEE802.11g, IEEE802.11n
• Bluetooth: Not supported

Device Interfaces

• Alarm Input: 4
• Network Interface: 1 RJ-45, 10/100 Mbps self-adaptive
• TAMPER: 1
• Exit Button: 1
• RS-485: 1
• TF Card: Reserved
• Lock Control: 1 relay, Max. 30 VDC 2 A
• Door Contact Input: 1

General

• Button: 1 physical button
• Installation: Surface mounting
• Indicator: 2
• Weight:
  • Net Weight: 0.190 kg
  • Gross Weight: 0.414 kg
• Protective Level: IP65
• Working Temperature: -40 °C to 55 °C (-40 °F to 131 °F)
• Working Humidity: 10% to 95% (non-condensing)
• Dimension (W × H × D): 138 mm × 65 mm × 27 mm (5.4″ × 2.6″ × 1.1″)
• Application Environment: Outdoor
• Power Consumption: ＜ 10 W
• Language: English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish
• Power Supply: 12 VDC, Standard PoE, AF
