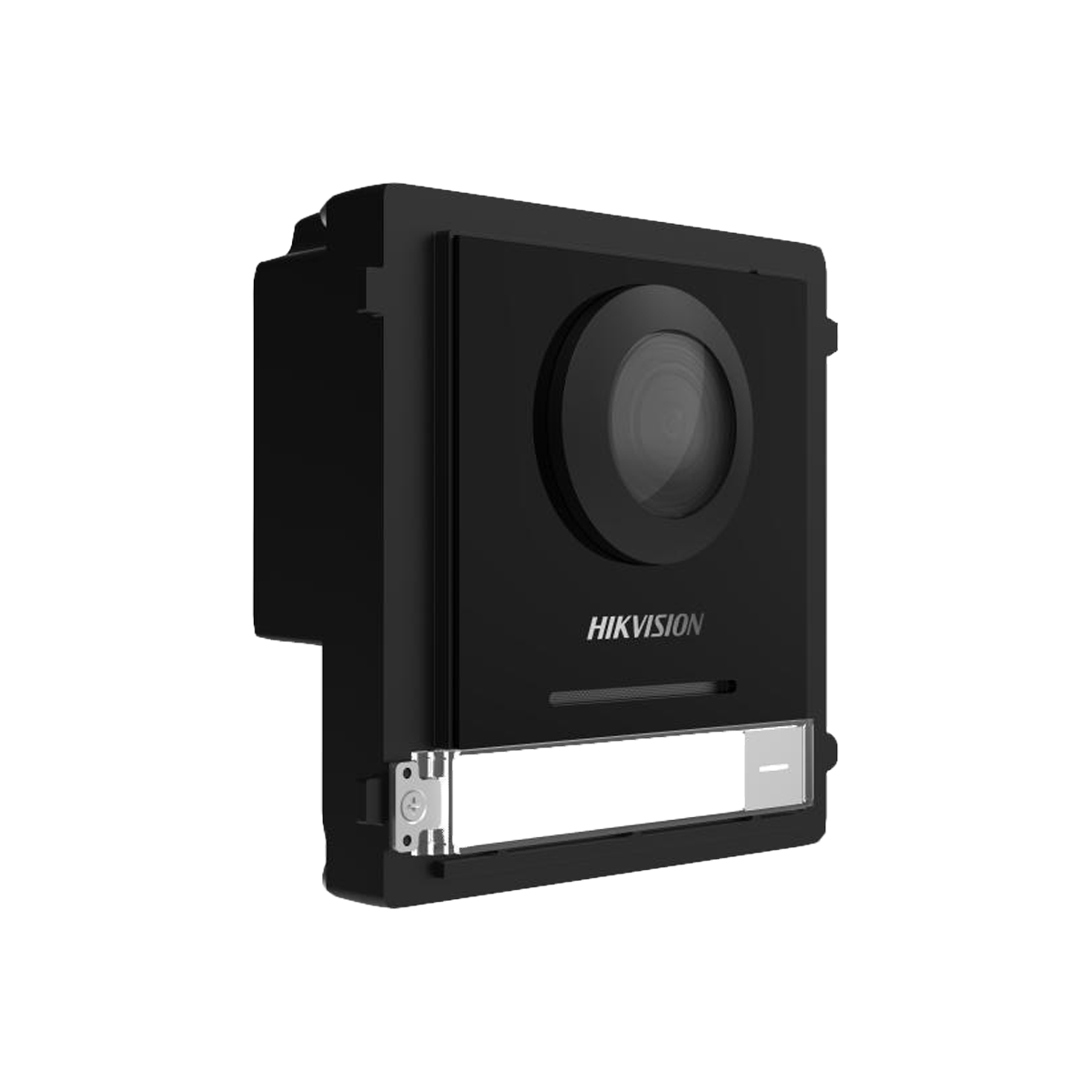

Hikvision Two wire main unit DS-KD8003Y-IME2

Technical Specification

System Parameters

• Operating System: Embedded Linux
• ROM: 32 MB
• RAM: 256 MB
• Processor: Embedded Processor

Video Parameters

• Lens: 1
• Resolution: 2 MP
• Field of View (FOV): Horizontal: 146°, Vertical: 82°
• Wide Dynamic Range (WDR): Supported
• Supplement Light: IR light, up to 3 m
• Video Compression Standard: H.264, H.265, MJPEG

Audio Parameters

• Audio Input: 1 built-in omnidirectional microphone
• Audio Output: 1 built-in loudspeaker
• Audio Compression Standard: G.711 U, G.711 A, Opus, AAC-LD, AAC-LC, G.726, G.722.1
• Audio Compression Bitrate: 64 Kbps
• Audio Quality: Noise suppression and echo cancellation
• Volume Adjustment: Adjustable

Capacity

• User Capacity: 2000
• Linked Indoor Station Capacity: 500
• Sub Door Station Capacity: 16

Network Parameters

• Network Protocol: TCP/IP, RTSP, IPv6, ONVIF

Device Interfaces

• Alarm Input: 4 (2 exit buttons and 2 door contacts by default)
• TAMPER: 1
• Exit Button: 2 (2 for lock control)
• RS-485: 1 (for Hikvision’s sub-module communication)
• Lock Control: 2 relays, Max. to 30 VDC, 2 A
• Door Contact Input: 2
• Two-Wire IP Interface: 1

General

• Button: 1
• Installation: Surface mounting, flush mounting
• Weight:
  • Net Weight: 0.380 kg
  • Gross Weight: 0.541 kg
• Protective Level: IP65
• Working Temperature: -40°C to 60°C (-22°F to 140°F)
• Working Humidity: 10% to 90%
• Dimensions (W × H × D): 100 mm × 98 mm × 42 mm
• Power Supply: Powered by KAD704Y or KAD706Y series distributor
• Application Environment: Outdoor
• Power Consumption: $\le$ 4 W
• Language Support: English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan)
