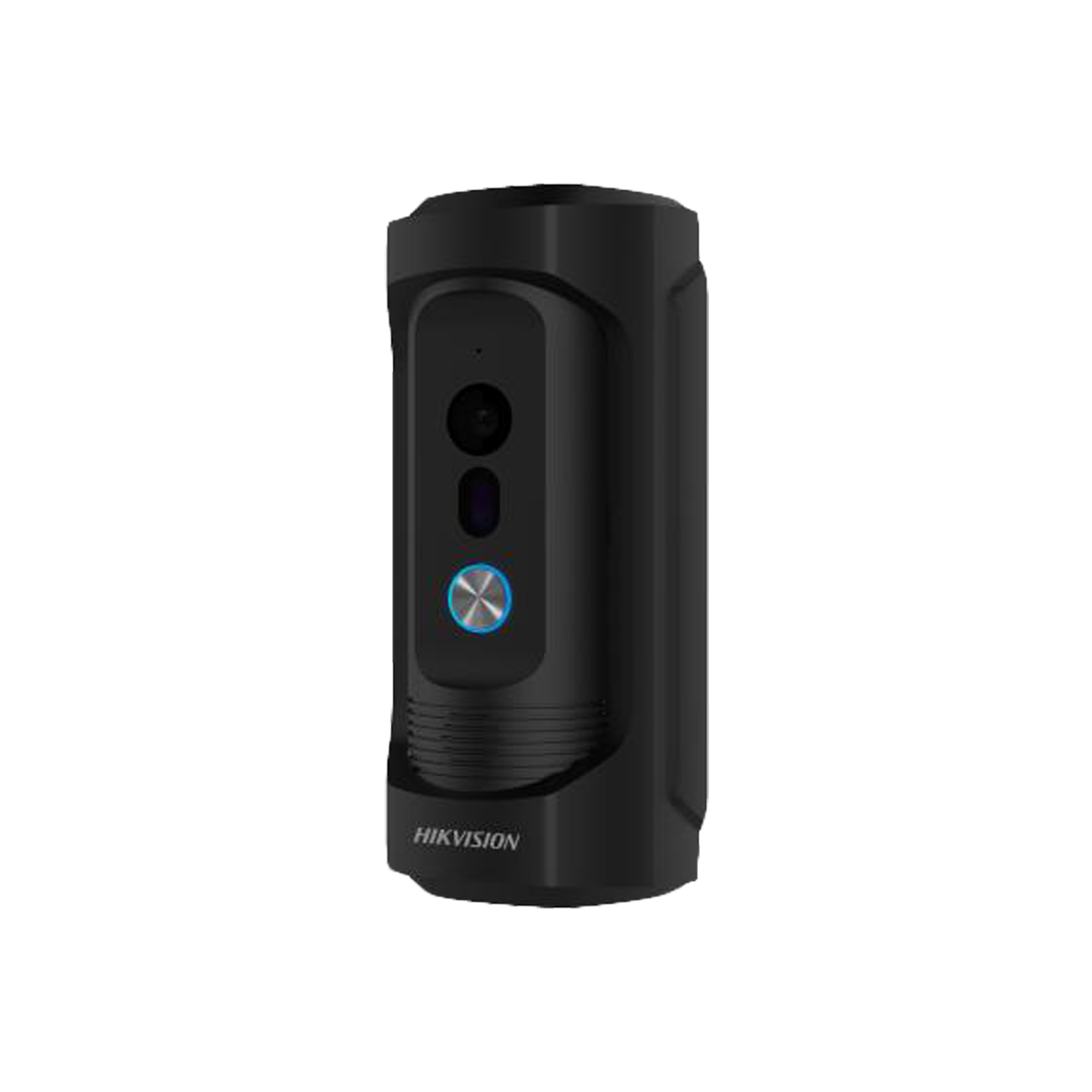

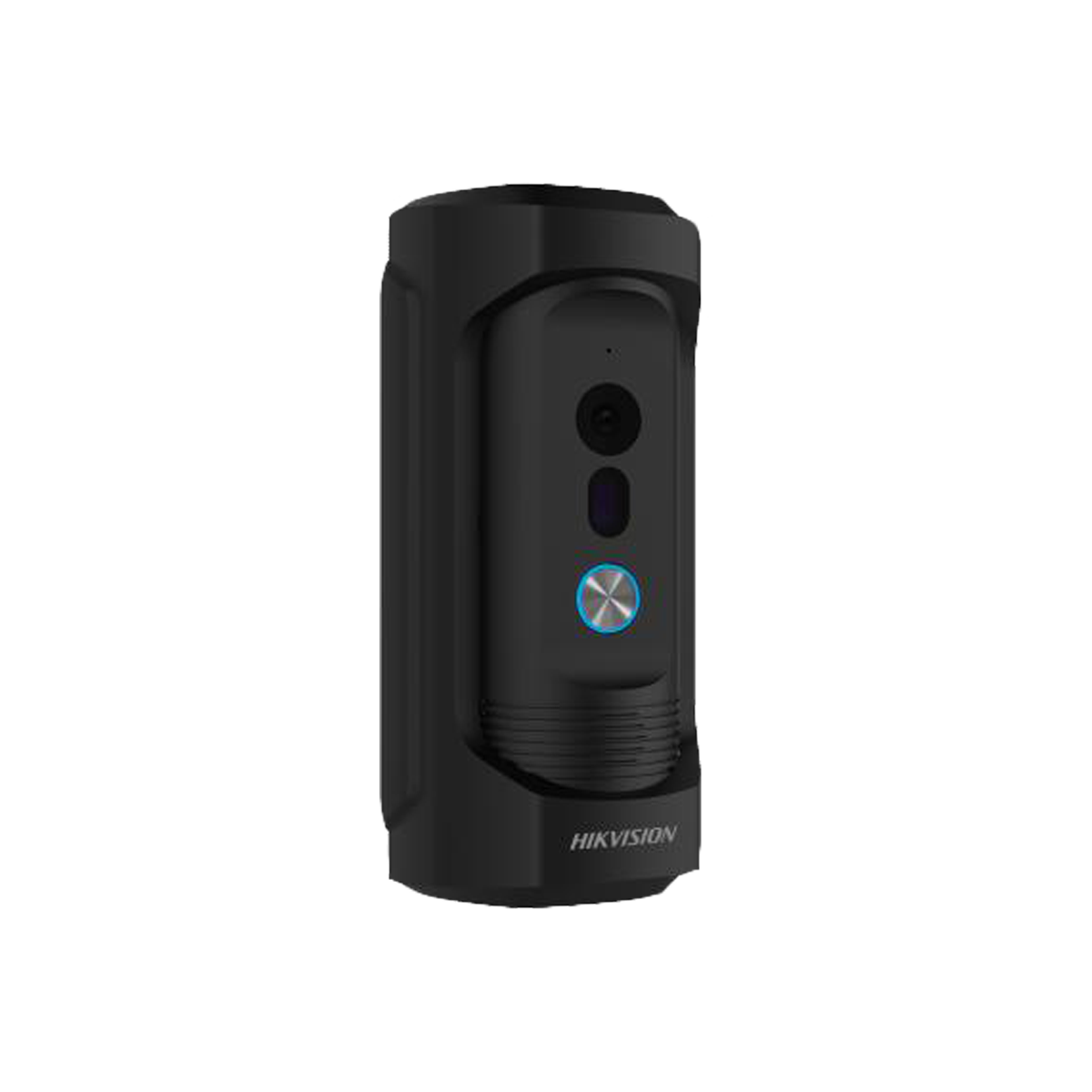

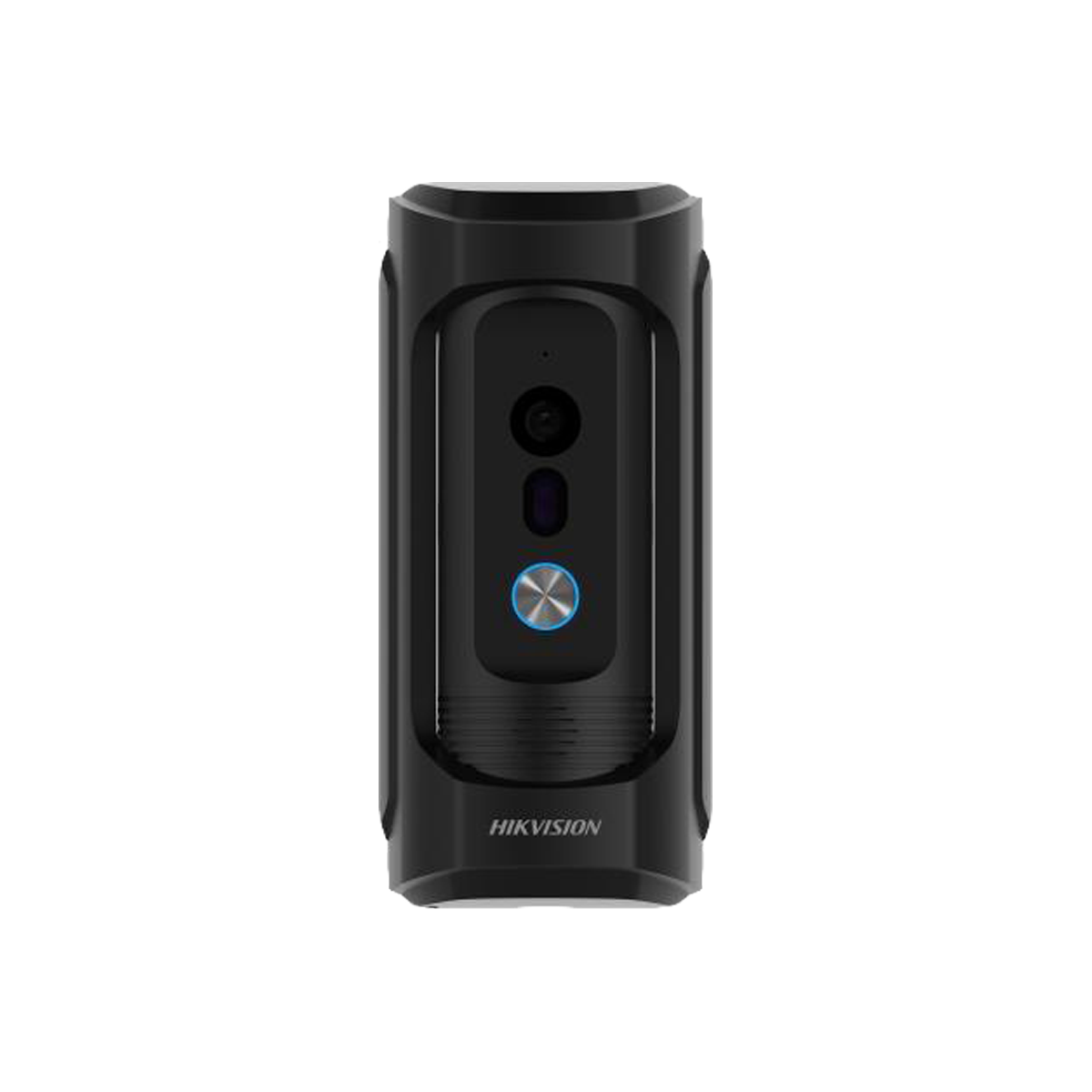

Hikvision Vandal-Resistant Doorbell DS-KB8113-IME1(B)
- 2MP HD Camera with IR supplement providing excellent image quality
- Supports standard POE power supply
- Supports mechanical doorbell, easier to call
- Convenient Hik-Connect APP Mobile Control: Receive calls, open the door, and live view remotely
- Supports web configuration
- Higher protection level: IK09 & IP65
Technical Specification
System Parameters
- Operating System: Embedded Linux operating system
- ROM: 32 MB
- RAM: 256 MB
- CPU: Embedded MCU Processor
Display Parameters
- Screen Size: Not specified
- Operation Method: Not specified
- Type: Not specified
- Resolution: Not specified
Video Parameters
- Lens: 1
- Resolution:
- Mainstream: 1920 × 1080
- Sub Stream: 640 × 480
- FOV (Field of View):
- Horizontal: 95°
- Vertical: 54°
- WDR (Wide Dynamic Range): Supported
- Supplement Light: IR supplement
- Video Compression Standard: H.264
Audio Parameters
- Audio Compression Standard: G.711 U, G.711 A
- Audio Input: Built-in omnidirectional microphone
- Audio Output: Built-in loudspeaker (more than 80 dB within 30 cm)
- Audio Compression Bitrate: 64 Kbps
- Audio Quality: Noise suppression and echo cancellation
- Volume Adjustment: Adjustable
Capacity
- Face Capacity: Not specified
- Card Capacity: Not specified
- Linked Indoor Station Capacity: 1
- Sub Door Station Capacity: 16
Network Parameters
- Network Protocol: TCP/IP, RSTP, SIP
- Wired Network: 10/100 Mbps self-adaptive Ethernet
- Wi-Fi Standard: Not specified
- Bluetooth Version: Not specified
- 3G/4G Standard: Not specified
Device Interfaces
- Alarm Input: 1
- Debugging Port: 1
- Network Interface: 1
- Lock Control: 1 (1 relay, max to 30 VDC, 2 A)
- Power Interface: 1
General
- Button: 1
- Power Supply: IEEE802.3af, standard PoE, or 12 VDC
- Installation: Surface mounting
- Power Consumption: ＜ 10 W
- Working Temperature: -30°C to +50°C (-22°F to 122°F)
- Weight:
- Gross Weight: 0.992 kg
- Net Weight: 0.795 kg
- Working Humidity: 10% to 90%
- Protective Level: IP65, IK09
- Dimensions (L x W x H): 161.85 mm × 74.13 mm × 53.2 mm (6.37″ × 2.92″ × 2.09″)
- Battery: Not specified
- Language Support: English, French, Portuguese, Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Slovak, Brazilian Portuguese
- Application Environment: Outdoor and Indoor
