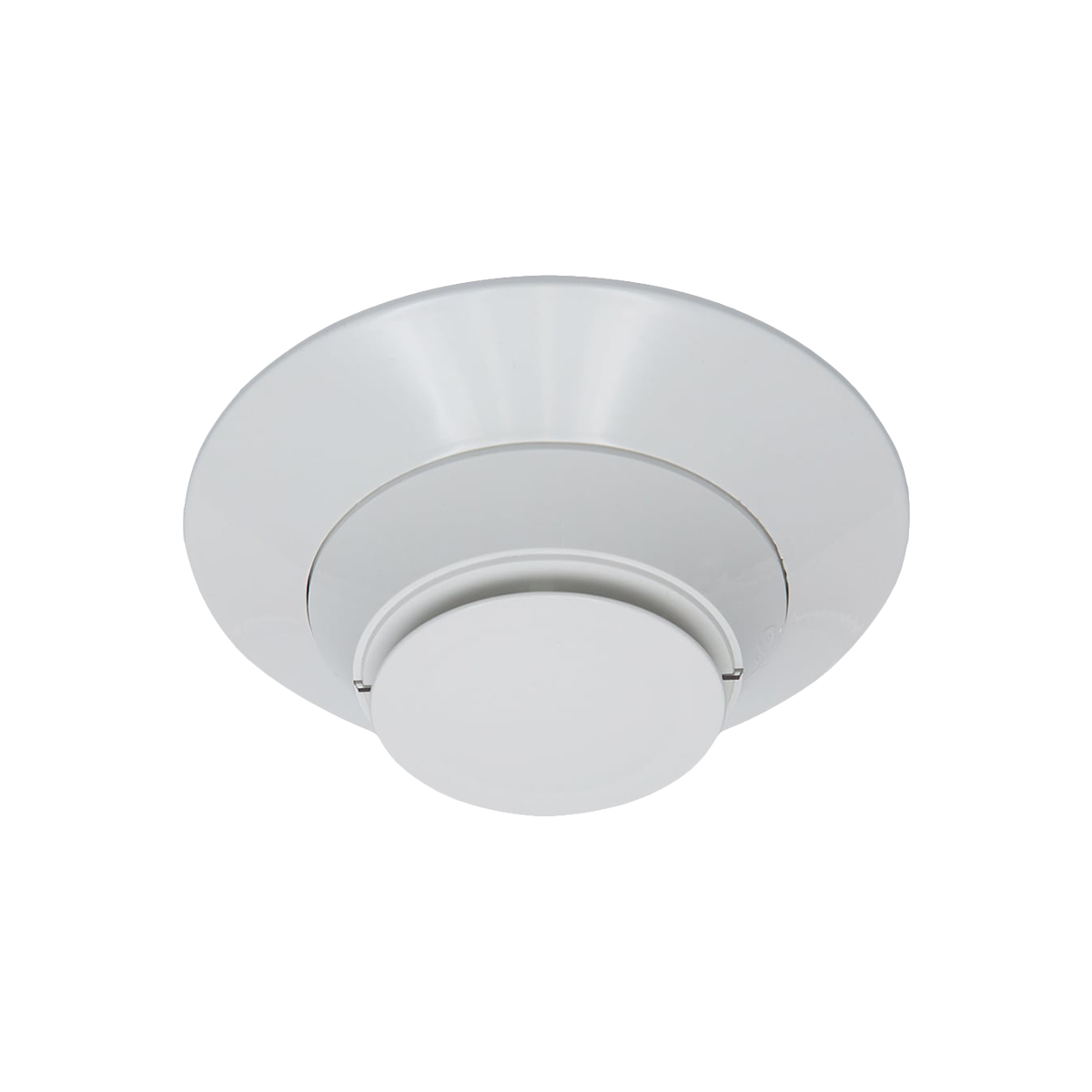

Honeywell IDP-PHOTO-IV Intelligent Photoelectric Smoke Detector
- Sensitivity (UL Applications): 0.5% to 4.0% per foot obscuration
- Size (Height): 2.0″ (51mm)
- Operating Temperature Range: 32°F to 122°F (0°C to 50°C)
- UL/ULC Listed Velocity Range: 0-4000 ft/min. (1219.2 m/min.)
- Voltage Range: 15 – 32 volts DC peak
Technical Specifications
Physical/Environmental
- Sensitivity:
- UL Applications: 0.5% to 4.0% per foot obscuration.
- ULC Applications: 0.5% to 3.5% per foot obscuration.
- Size:
- Height: 2.0″ (51mm).
- Base determines diameter: B300-6: 6.1″ (15.6 cm) diameter; B501: 4″ (10.2 cm) diameter.
- For a complete list of detector bases, refer to FH-61070.
- Shipping Weight: 3.4 oz (95 g).
- Operating Temperature Range:
- IDP-PHOTO-W Series: 32°F to 122°F (0°C to 50°C).
- UL/ULC Listed Velocity Range:0-4000 ft/min. (1219.2 m/min.), suitable for installation in ducts.
- Relative Humidity: 10% – 93% non-condensing.
- Thermal Ratings:
- Fixed-temperature set point: 135°F (57°C).
- High temperature heat: 190°F (88°C).
Electrical Specifications
- Voltage Range: 15 – 32 volts DC peak.
- Standby Current (max. avg.): 200µA @ 24 VDC (one communication every 5 seconds with LED enabled).
- Max Current: 4.5 mA @ 24 VDC (“ON”).
