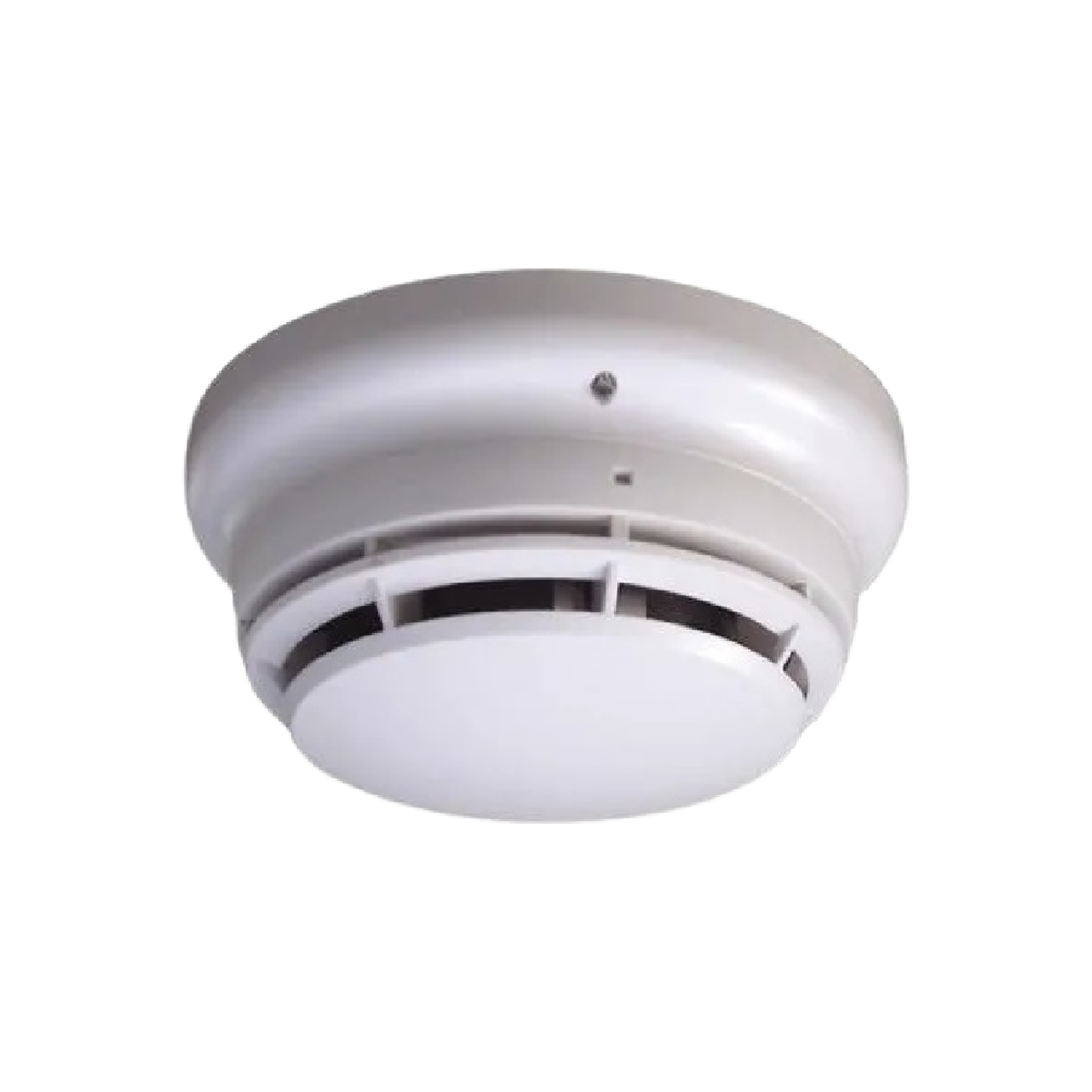

Simplex Heat Detector 4098-9733/4098-9789
- Communications and Sensor Supervisory Power: IDNet or MAPNET II communications, auto-selected
- UL Listed Operating Temperature Range: 32°F to 100°F, 0°C to 38°C
- Operating Temperature Range with 4098-9714 Smoke Sensor: 15°F to 122°F, -9°C to 50°C
- Humidity Range: 10% to 95% RH
- 4098-9714 Smoke Sensor Air Velocity Rating: 0 to 4000 ft/min, 0 to 1220 m/min
Technical Specifications
- Communications and Sensor Supervisory Power: IDNet or MAPNET II communications, auto-selected; one address for each base.
- Communications Connections: Screw terminals for in/out wiring, 18 to 14 AWG, 0.82 mm² to 2.08 mm².
- Remote LED Alarm Indicator Current: 1 mA typical, no impact to alarm current.
- Remote LED Alarm Indicator and Relay Connections: Color-coded wire leads, 18 AWG, 0.82 mm².
- UL Listed Operating Temperature Range: 32°F to 100°F, 0°C to 38°C.
- Operating Temperature Range:
- with 4098-9733 Heat Sensor: 32°F to 122°F, 0°C to 50°C.
- with 4098-9714 Smoke Sensor: 15°F to 122°F, -9°C to 50°C.
- with 4098-9734 Heat Sensor: 32°F to 150°F, 0°C to 66°C.
- Storage Temperature Range: 0°F to 140°F, -18°C to 60°C.
- Humidity Range: 10% to 95% RH.
- 4098-9714 Smoke Sensor Air Velocity Rating: 0 to 4000 ft/min, 0 to 1220 m/min.
- Housing Color: Frost white or black.
